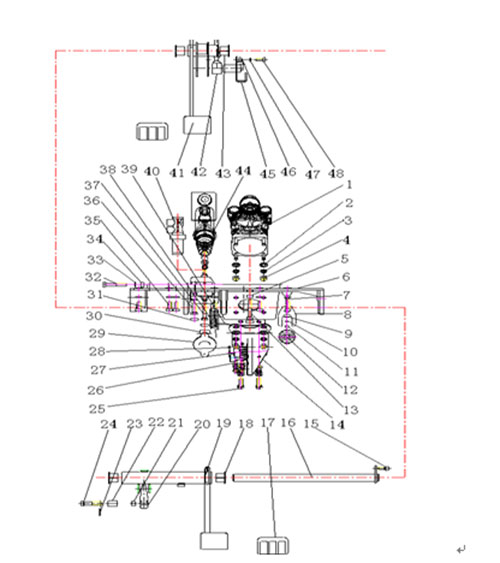

| NO | PART NO | QUANTITY | PART NAME | 名 称 |
| 1 | WG9000360520 | 1 | Total brake valve | 制动总阀 |
| 2 | Q40108 | 4 | Flat washer | 平垫圈 |
| 3 | Q40308 | 4 | Spring washer | 弹簧垫圈 |
| 4 | Q340B08 | 4 | Type 1 hexagonal nut | 1型六角螺母 |
| 5 | Q340B08 | 1 | Type 1 hexagonal nut | 1型六角螺母 |
| 6 | AZ9925360020 | 1 | Composite scaffolds | 组合支架 |
| 7 | Q150B0616 | 2 | Hexagon head bolts | 六角头螺栓 |
| 8 | AZ9925360027 | 1 | Brake light sensor bracket | 制动灯传感器支架 |
| 9 | Q40106 | 2 | Flat washer | 平垫圈 |
| 10 | Q40306 | 2 | Spring washer | 弹簧垫圈 |
| 11 | Q340B06 | 2 | Type I hexagonal nut | I型六角螺母 |
| 12 | WG9718710005 | 1 | The clutch switch | 离合器开关 |
| 13 | Q150B0845 | 1 | Hexagon head bolts | 六角头螺栓 |
| 14 | AZ9925470108 | 1 | Transitional connection stents | 过渡连接支架 |
| 15 | Q1840616 | 1 | Hex flang bolts | 六角法兰面螺栓 |
| 16 | AZ9925360025 | 1 | The spindle assembly | 芯轴总成 |
| 17 | AZ9925230006 | 2 | Pedal rubber cover | 踏板橡胶罩 |
| 18 | AZ9719360060 | 2 | Self-lubricating bushing | 自润滑衬套 |
| 19 | AZ9925360021 | 1 | Brake pedal assembly | 制动踏板总成 |
| AZ9925360030 | 1 | Brake pedal assembly | 制动踏板总成 | |
| 20 | AZ9719360063 | 1 | tappet | 挺杆 |
| 21 | Q341B08 | 1 | Type I hexagonal nut - fine thread | I型六角螺母-细牙 |
| 22 | AZ9719360062 | 1 | pin | 销轴 |
| 23 | Q5002016 | 1 | Cotter pin | 开口销 |
| 24 | Q173B0840 | 1 | Hexagon head bolts | 六角头螺栓 |
| 25 | Q150B0825 | 2 | Hexagon head bolts | 六角头螺栓 |
| Q40108 | 2 | Flat washer | 平垫圈 | |
| Q40308 | 2 | Spring washer | 弹簧垫圈 | |
| Q340B08 | 2 | Ⅰ hexagonal nut | Ⅰ型六角螺母 | |
| 26 | Q150B0616 | 2 | Hexagon head bolts | 六角头螺栓 |
| Q40106 | 2 | Flat washer | 平垫圈 | |
| Q40306 | 2 | Spring washer | 弹簧垫圈 | |
| Q340B06 | 2 | Type I hexagonal nut | I型六角螺母 | |
| 27 | WG9718710005 | 1 | The clutch switch | 离合器开关 |
| 28 | AZ9925230017 | 1 | Sensor bracket | 传感器支架 |
| 29 | AZ9925230020 | 1 | Sealing plug | 密封堵塞 |
| 30 | AZ9719230021 | 1 | Sealing wall (inner decoration factory) | 密封堵(内饰件厂) |
| 31 | AZ9123360067 | 3 | Plug (2819602003691). | 堵头（2819602003691） |
| 32 | Q150B0845 | 1 | Hexagon head bolts | 六角头螺栓 |
| 33 | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 34 | Q340B08 | 1 | Type 1 hexagonal nut | 1型六角螺母 |
| 35 | Q150B0818 | 9 | Hexagon head bolts | 六角头螺栓 |
| Q40108 | 9 | Flat washer | 平垫圈 | |
| 36 | Q150B0828 |
