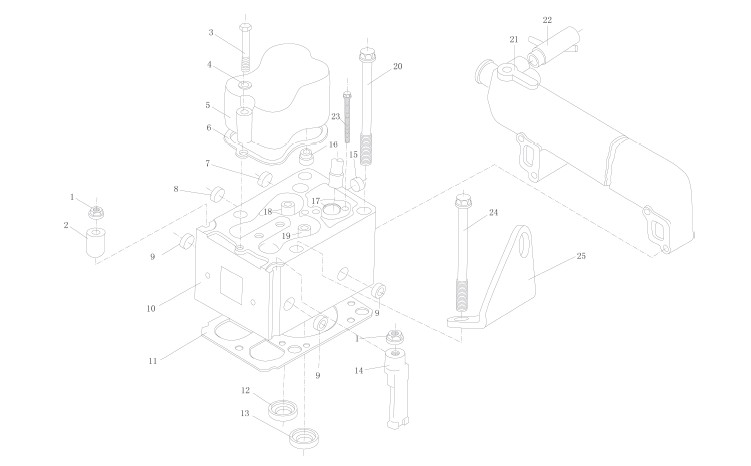

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61200040034 | 带肩螺母 | Nut |
| 2 | 61200040023 | 夹紧块 | Cljp |
| 3 | 90003800466 | 六角头螺栓 | Bolt |
| 4 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 5 | 612600040149 | 气缸盖罩 | Cover |
| 6 | 61404002l | 气缸盖罩衬垫 | Joint |
| 7 | 90003989277 | 碗形塞片 | Cover plug |
| 8 | 90003989721 | 碗形塞片 | Cover plug |
| 9 | 90003989294 | 碗形塞片 | Cover plug |
| 10 | 612600040299 | 气缸盖 | Cover |
| 11 | 61500040049 | 气缸盖衬垫 | Joint |
| 12 | 61560040057 | 进气门座 | Intake valve seat |
| 13 | 81560040037 | 排气门座 | Exllaust valve seat |
| 14 | 61200040027 | 夹紧块 | Clip |
| 15 | 90003989725 | 碗形塞片 | Cover plug |
| 16 | 612600040114 | 气门阀杆密封套 | Scraper |
| 17 | 612600040235 | 喷油器衬套 | Nozzle holder |
| 18 | 612600040113 | 气门导管 | Valve guide |
| 19 | 61500040014 | 排气门弹簧下座 | Spring base |
| 20 | 61500040023 | 气缸盖主螺栓 | Bolt |
| 21 | 612600040241 | 出水管 | Pipe |
| 22 | 61500060045 | 管接头组件 | Connecting piece |
| 23 | 90013550006 90013550007 |
六角头螺栓 | Bolt |
| 24 | 612600040253 | 气缸盖主螺栓 | Bolt |
| 25 | 612600040238 | 吊板 | Clip |
