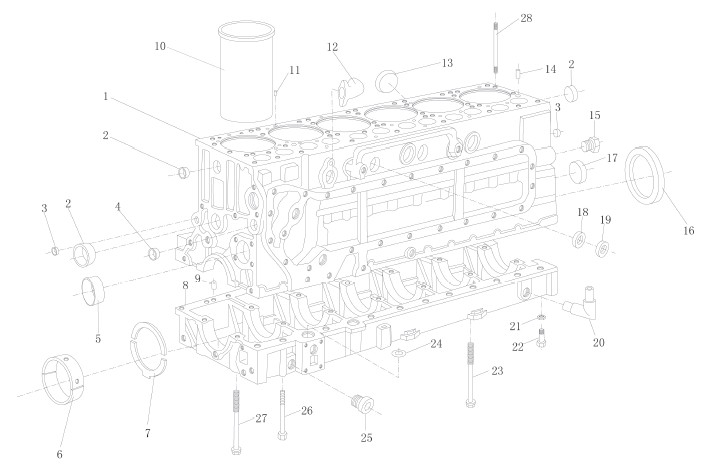

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600011729 | 气缸体 | Crankcase |
| 2 | 90003982121 | 碗形塞 | Corehole plug |
| 3 | 90003989480 | 碗形塞 | Corehole plug |
| 4 | 90003989204 | 碗形塞 | Corehole plug |
| 5 | 615600l0029 612600010990 |
凸轮轴衬套 | Bush |
| 6 | 81500010046 | 主轴瓦(付) | Shell pin |
| 7 | 81500010125 | 止推片(付) | Stop washer |
| 8 | 61500010366 | 曲轴箱 | Crank case |
| 9 | 90003901604A | 圆柱销 | Dowel pin |
| 10 | 61500010344 | 气缸套 | Liner |
| 11 | 90003909626 | 弹性圆柱销 | Dowel pin |
| 12 | 614010279 | 通风弯管 | Elbow connector |
| 13 | 90003989210 | 碗形塞 | Corehole plug |
| 14 | 90003901604 | 圆柱销 | Dowel pin |
| 15 | 61460070011 | 主油道后螺塞 | Plug |
| 16 | 61500010100 | 后油封 | Gasket |
| 17 | 90003989288 | 碗形塞 | Corehole plug |
| 18 | 90003989289 | 碗形塞 | Corehole plug |
| 19 | 90003989215 | 碗形塞 | Corehole plug |
| 20 | 612600070097 | 回油弯管 | Pipe |
| 21 | 188250083 | 自锁垫圈 | Washer |
| 22 | 90003862428 | 圆柱头内六角螺钉 | Screw |
| 23 | 614010217 | 主轴承螺栓 | Bolt |
| 24 | 81400010032 | 密封圈 | Seal ring |
| 25 | 90003962050 | 内六角螺塞 | Plug |
| 26 | 90003802493 | 六角头螺栓 | Bolt |
| 27 | 614010114 | 主轴承螺栓 | Bolt |
| 28 | 61500010185 | 气缸盖螺栓 | Bolt |
