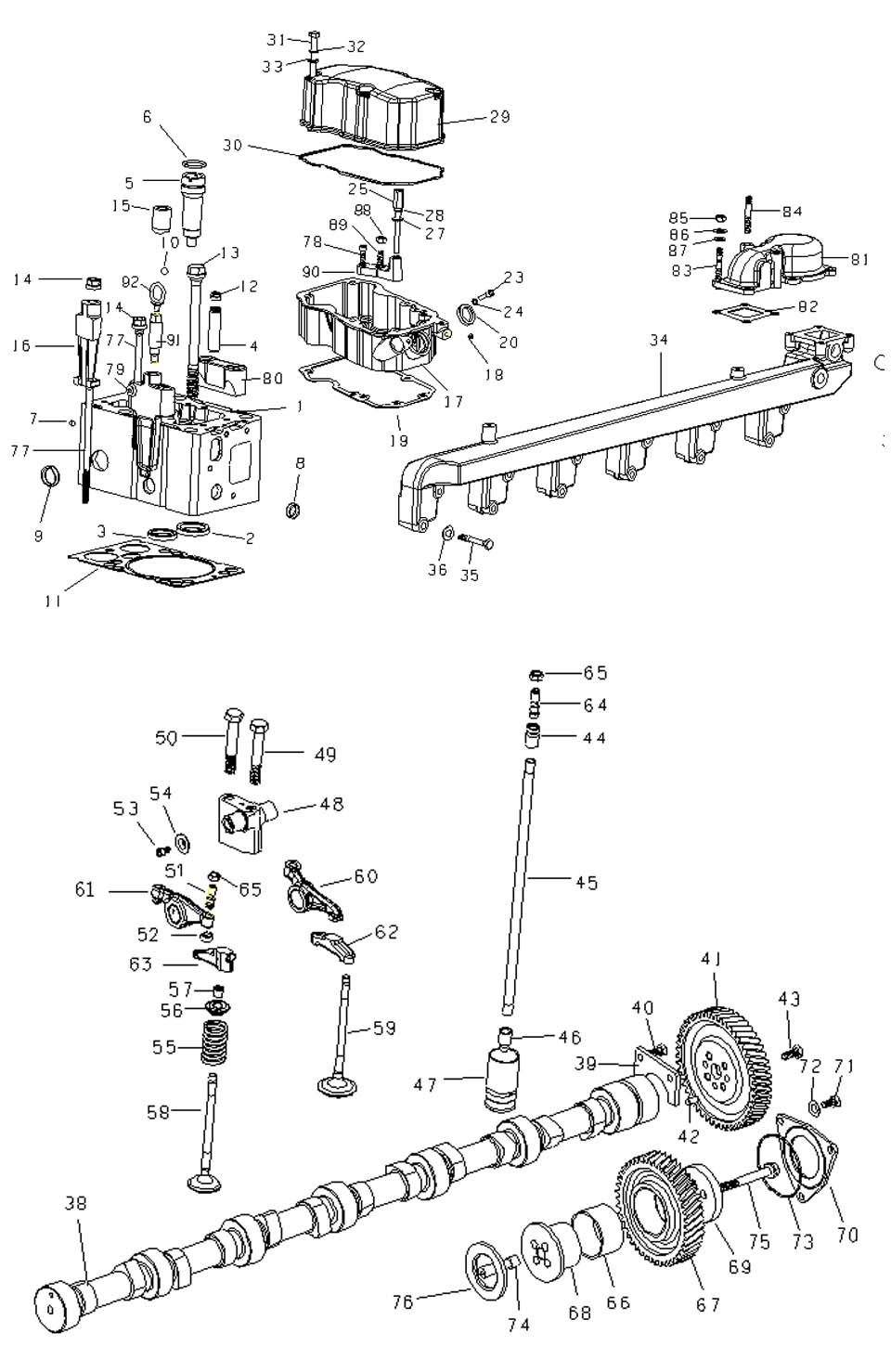

| NO. | Part no | Part Name | Chinese name |
| 1 | AZ1099040003A | Cylinder head | 气缸盖 |
| 2 | VG1540040006 | Ring (outlet) | 进气门座 |
| 3 | VG1540040007 | Ring (inlet) | 排气门座 |
| 4 | VG1540040008 | Valve guide | 气门导管 |
| 5 | VG1092040306 | Nozzle holder | 喷油器衬套 |
| 6 | VG1540040010 | Nozzle holder gasket | 喷油器衬套密封圈 |
| 7 | VG1540040011 | Bolt | 油孔堵塞 |
| 8 | 90003989721 | Core plug | 碗形塞片 |
| 9 | 90003989294 | Core plug | 碗形塞片 |
| 10 | 90016210001 | Steel ball | 钢珠 |
| 11 | VG1540040015A | Joint | 气缸盖衬垫 |
| 12 | VG1540040016 | Scraper | 气门杆密封套 |
| 13 | VG1500040023 | Bolt | 气缸盖主螺栓 |
| 14 | VG1200040034 | Nut | 带肩螺母 |
| 15 | VG1200040023A | Clip | 夹紧块 |
| 16 | VG1200040027 | Clip | 夹紧块 |
| 17 | VG1099040020 | Rocker cover lower | 摇臂罩下罩总成 |
| 18 | Q61506 | Bolt | 开槽柱形螺塞 |
| 19 | VG1099040022 | Gasket | 摇臂罩下罩衬垫 |
| 20 | VG1540040022 | Reinforced seal | 骨架油封 |
| 23 | Q218B0620 | Socket bolt | 内六角圆柱头螺钉 |
| 24 | 90014350003 | Spring washer | 弹簧垫圈 |
| 25 | VG1540040024 | Bolt | 六角头螺栓 |
| 27 | 90003930261 | Washer | 平垫圈 |
| 28 | 90003931102 | Spring washer | 弹簧垫圈 |
| 29 | VG1099040019 | Rocker cover | 摇臂罩上罩 |
| 30 | VG1099040018 | Ring | 上罩密封圈 |
| 31 | VG14110064 | Bolt | 进气管紧固螺栓 |
| 32 | 90003932023 | Spring washer | 波形弹性垫圈 |
| 33 | Q40108 | Washer | 平垫圈 |
| 34 | VG1540040231 | Water outlet pipe | 出水管 |
| 35 | 90003802455 | Bolt | 六角头螺栓 |
| 36 | 90003932023 | Spring washer | 波形弹性垫圈 |
| 37 | VG1500060045 | Connecting piece | 管接头组件 |
| 38 | VG1540050004 | Camshaft | 凸轮轴 |
| 39 | VG14050133 | Flange | 凸轮轴止推片 |
| 40 | 90003802411 | Bolt | 六角头螺栓 |
| 41 | VG14050053 | Camshaft gear | 凸轮轴正时齿轮 |
| 42 | 90003901409 | Dowel pin | 圆柱销 |
| 43 | 90003802443 | Bolt | 六角头螺栓 |
| 44 | Z61500050931 | Push rod assembly | 气门推杆总成 |
| 47 | VG1500050032 | Push rod | 气门挺柱 |
| 48 | VG1099050005 | Rocker arm pedestal | 气门摇臂座 |
| 49 | Q150B1275TF2 | Bolt | 六角头螺栓 |
| 50 | Q150B1275TF2 | Bolt | 六角头螺栓 |
| 51 | VG1246050045 | Bolt | 气门桥调节螺钉 |
| 52 | VG1246050046 | Block | 球头垫块 |
| 53 | Q218B0610 | Socket bolt | 内六角螺栓 |
| 54 | VG1540050023 | Spring washer | 碗形环 |
| 55 | VG1540050011 | Valve spring | 气门弹簧 |
| 56 | VG1540050012 | Valve cone | 气门锁夹 |
| 57 | VG1540050013 | Spring plate | 气门弹簧座圈 |
