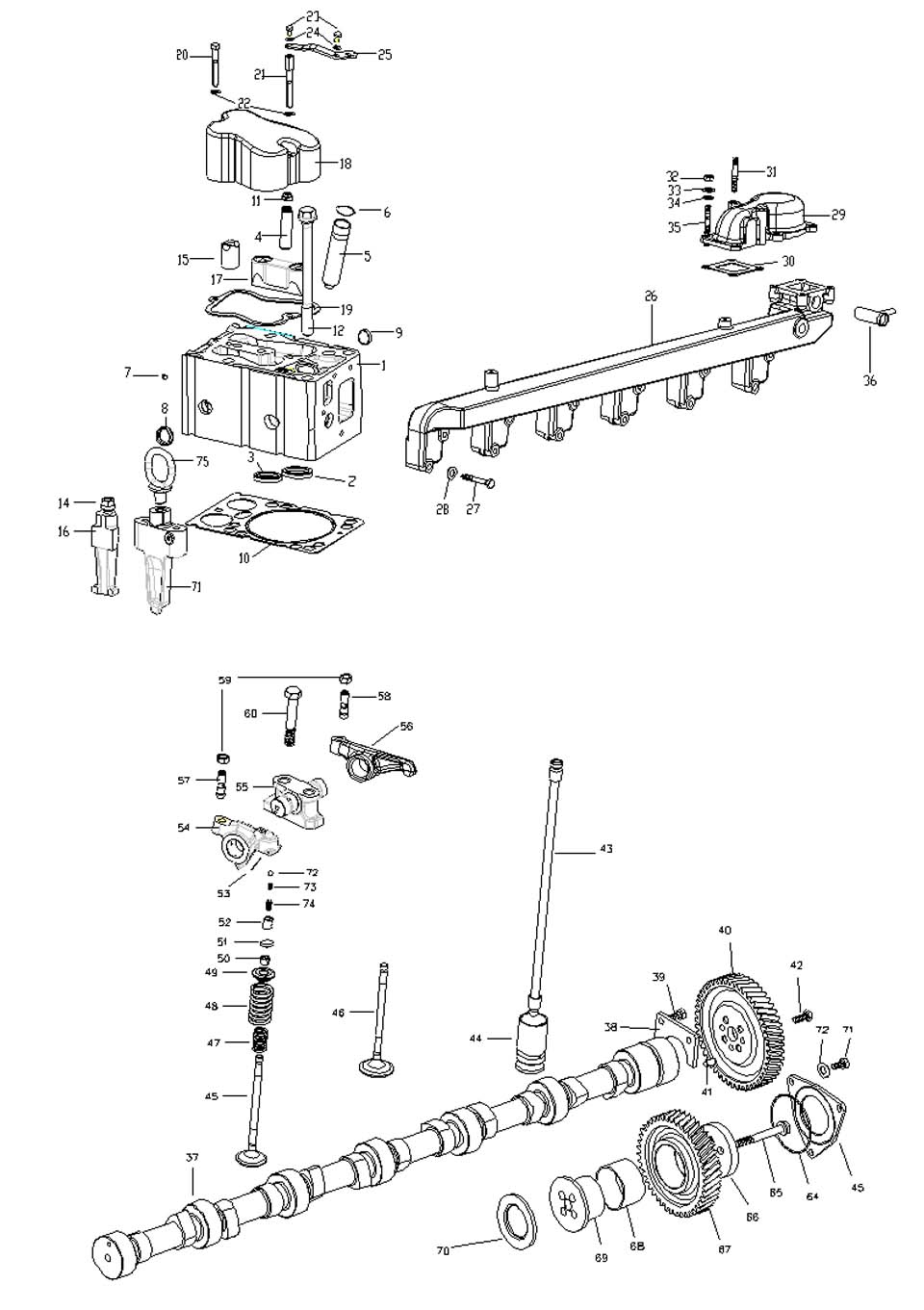

CYLINDER HEAD（2- VALVE）

2016-09-27 13:12:28



 NO. Part No Part Name Chinese  name
1 AZ1096040028 Cylinder head 气缸盖
2 VG1560040057 Ring (outlet) 进气门座
3 VG1560040037 Ring (inlet) 排气门座
4 VG1560040031 Valve guide 气门导管
5 VG1096040001A Nozzle holder 喷油器衬套
6 VG1540040010 Nozzle holder gasket 喷油器衬套密封圈
7 VG1540040011 Bolt 油孔堵塞
8 90003989721 Core plug 碗形塞片
9 90003989294 Core plug 碗形塞片
10 VG1500040065 Joint 气缸盖衬垫
11 VG1560040032 Scraper 气门杆密封套
12 VG1500040023 Bolt 气缸盖主螺栓
14 VG1200040034 Nut 带肩螺母
15 VG1200040023A Clip 夹紧块
16 VG1200040027 Clip 夹紧块
17 VG1500040009 Clamping yoke 夹紧块
18 VG1500040067 Rocker cover 气缸盖罩
19 VG14040065 Ring 气缸盖罩衬垫
20 90003800466 Bolt 六角头螺栓
21 VG1096040021 Bolt 六角头螺栓
22 90003932023 Spring washer 波形弹性垫圈
23 Q150B0610 Bolt 六角头螺栓
24 Q41806 Spring washer 波形弹性垫圈
25 VG1096080082 Support 支架
26 VG1096040330 Pipe 出水管
27 90003800466 Bolt 六角头螺栓
28 90003932023 Spring washer 波形弹性垫圈
29 VG1096040332 Water outlet take over 出水管接管
30 VG1096040331 Water outlet take over gasket 出水管接管垫片
31 90003813467 Stud 双头螺柱
32 90003871252 Nut I型六角头螺母
33 90003932023 Spring washer 波形弹性垫圈
34 90014040007 Washer 平垫圈
35 90003813429 Stud 双头螺柱
36 VG1500060045 Connecting piece 管接头组件
37 VG1500050096 Camshaft 凸轮轴
38 VG14050133 Flange 凸轮轴止推片
39 90003802411 Bolt 六角头螺栓
40 VG14050053 Camshaft gear 凸轮轴正时齿轮
41 90003901409 Dowel pin 圆柱销
42 90003802443 Bolt 六角头螺栓
43 VG1500050070 Push rod assembly 气门推杆总成
44 VG1500050032 Push rod 气门挺柱
45 VG1560050041 Outlet  valve 排气门
  VG1560050027 Outlet  valve 排气门
46 VG1560051001 Inlet valve 进气门
47 VG1500050001 Valve spring 气门内弹簧
48 VG1500050002 Valve spring 气门外弹簧
49 VG1500050109 Spring plate 气门弹簧上座
50 VG1500050025 Valve cone 气门锁夹
51 VG1500050105 Valve cap 气门帽
52 VG1500050044 Rocker arm piston 排气门摇臂活塞
53 90016220001 pin 滚针
54 VG1500050041
