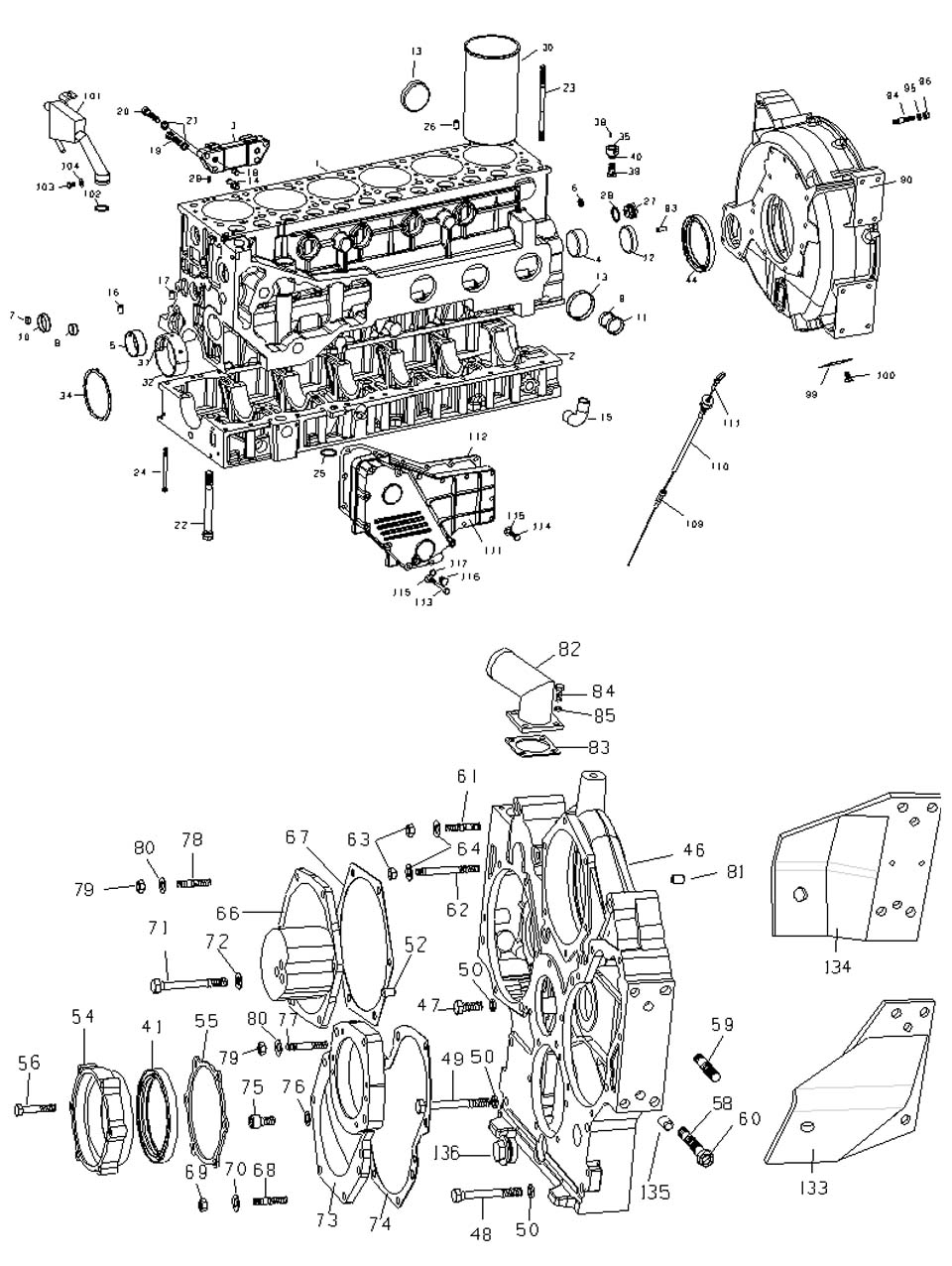

| NO. | Part No | Part Name | Chinese No. |
| - | AZ1096010190 | Cylinder block ass | 气缸体总成 |
| AZ1096010020 | Cylinder block ass | 气缸体总成 | |
| AZ1099010077 | Cylinder block ass | 气缸体总成 | |
| AZ1099010081 | Cylinder block ass | 气缸体总成 | |
| 1 | AZ1096010134 | Cylinder block | 气缸体 |
| AZ1095010010 | Cylinder block | 气缸体 | |
| AZ1099010078 | Cylinder block | 气缸体 | |
| AZ1099010079 | Cylinder block | 气缸体 | |
| 2 | 61500010366C | Crankcase | 曲轴箱 |
| 161500010369 | Crankcase | 曲轴箱 | |
| 3 | VG1540010019 | Bracket | 油泵托架 |
| 4 | VG1560010029 | Bush | 凸轮轴衬套 |
| 5 | VG2600010990 | Bush | 凸轮轴衬套 |
| 6 | 90003984080 | Core plug | 碗形塞17×7.3 |
| 7 | 90003989480 | Core plug | 碗形塞17×8 |
| 8 | 90003989204 | Core plug | 碗形塞28×12 |
| 9 | 90003989289 | Core plug | 碗形塞40×12 |
| 10 | 90003982121 | Core plug | 碗形塞45×12 |
| 11 | 90003989215 | Core plug | 碗形塞45×12 |
| 12 | 90003989288 | Core plug | 碗形塞65×14 |
| 13 | 90003989210 | Core plug | 碗形塞75×14 |
| 14 | VG2600130026 | Connecting piece | 水冷空压机水管接头 |
| 15 | VG2600070097 | Pipe | 回油弯管 |
| VG1460010011 | |||
| 16 | 90003901604A | Dowel pin | 圆柱销 |
| 17 | Q5211220 | Dowel pin | 圆柱销 |
| 18 | Q5211216 | Dowel pin | 圆柱销 |
| 19 | 90003802650 | Bolt | 六角头螺栓 |
| 20 | 90011350045 | Bolt | 六角头螺栓 |
| 21 | 90003931142 | Spring washer | 弹簧垫圈 |
| 22 | VG14010114 | Bolt | 主轴承螺栓 |
| VG14010217 | Bolt | 主轴承螺栓 | |
| 23 | VG1500010185 | Stud | 气缸盖螺栓 |
| 24 | 90003802493 | Bolt | 六角头螺栓 |
| 25 | VG1400010032 | Gasket | 密封圈 |
| 26 | 190003901604 | Dowel pin | 圆柱销 |
| 27 | VG1460070011 | Bolt | 主油道后螺塞 |
| 28 | 90003909626 | Spring dowel pin | 弹性圆柱销 |
| 29 | 90003962051 | Bolt | 六角头螺塞 |
| 30 | VG1540010006 | Liner | 气缸套 |
| 31 | VG1500010046 | Main bearing | 主轴瓦付 |
| VG1540010021 | Main bearing upper half | 主轴瓦付(上瓦) | |
| 32 | VG1540010022 | Main bearing upper half | 主轴瓦付(下瓦) |
| 34 | VG1500010125 | Thrust bearing | 止推片付 |
| 35 | VG2600010659 | Spraying nozzle assembly | 机油喷嘴组件 |
| VG1560010090 | |||
| VG1560019090 | |||
| 38 | 90003909603 | Spring dowel pin | 弹性圆柱销 |
| 39 | 90003962621 | Bolt | 空心螺栓 |
| 40 | VG9003080001 | Gasket | 复合密封垫圈 |
| 41 | VG1047010038 | Front gasket | 前油封 |
| 44 | VG1047010050 | Back gasket | 后油封总成 |
| 46 | 61557010008 | Gear case | 齿轮室 |
| 47 | 900
