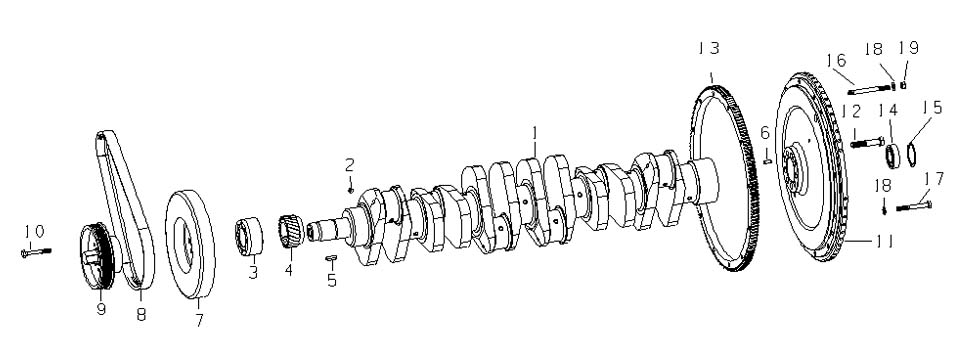

| NO. | Part no | Part Name | Chinese name |
| - | 61560020029 | Crankshaft ass | 曲轴总成 |
| 61500020071 | Crankshaft ass | 曲轴总成 | |
| 1 | 61560020024 | Crankshaft | 曲轴 |
| 61500020012 | Crankshaft | 曲轴 | |
| 2 | VG1560029001 | Jam | 堵头 |
| 3 | VG1500020070 | Flange | 法兰 |
| 4 | VG14020038 | Crankshaft gear | 曲轴齿轮 |
| 5 | Q5510828 | Key | 平键 |
| 6 | 90003901418 | Dowel pin | 圆柱销 |
| 7 | VG1560020010 | Vibration damper | 减振器 |
| VG1540020003 | Vibration damper | 减振器 | |
| 8 | VG2600020253 | Ribbed belt | 汽车多楔带 |
| VG1062060006 | Ribbed belt | 汽车多楔带 | |
| VG1062060007 | Ribbed belt | 汽车多楔带 | |
| 9 | VG1560020020 | Belt pulley | 皮带轮 |
| VG1062020001 | Belt pulley | 皮带轮 | |
| 10 | 90003802558 | Bolt | 六角头螺栓 |
| 11 | AZ1540020205 | Flywheel | 飞轮 |
| AZ1092020003 | Flywheel | 飞轮 | |
| R61540020204 | Flywheel | 飞轮 | |
| 12 | VG1500020046 | Bolt | 六角头螺栓 |
| 13 | VG2600020208 | Ring gear | 飞轮齿圈 |
| 14 | 90003311416 | Ball bearing | 向心球轴承 |
| 15 | 90003934310 | Circlip | 孔用弹性挡圈62×2 |
| 16 | 90003932024 | Spring washer | 波形弹性垫圈B10 |
| 17 | 90003800579 | Bolt | 六角头螺栓 |
| 18 | 90003813571 | Stud | 双头螺栓 |
| 19 | 90003871305 | Nut | 1型六角头螺母 |
