WD615 SERIES EURO 3

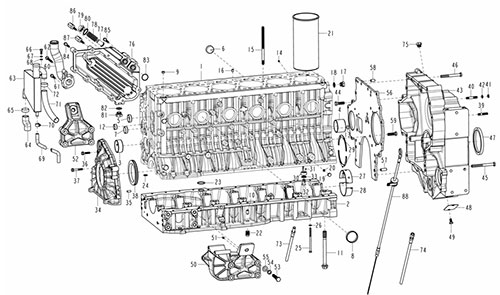

CYLINDER BLOCK

2016-09-27 10:44:38



Contact Us

  • Phone: +86 531 6138 8377

    Fax: +86 531 6138 8177

  • Robert: 008618766172431

  • Email: sales@topleadzzl.com

  • Skype: roberttoplead

  • 5TH BUILDING ZONE2, NO.15 LAN XIANG ROAD, TIAN QIAO DISTRICT, JINAN, CHINA

Copyright © 2016 TOP LEAD INTERNATIONAL TRADING CO., LTD All Rights Reserved.

 NO. Part No. Chinese Name Part name
- AZ1246010049  气缸体总成 Cylinder block assembly
1 AZ1246010040 气缸体 Cylinder block
2 AZ1246010029 曲轴箱 Crankcase
3 VG1246010042 凸轮轴衬套 Camshaft bush
4 VG1246010043 凸轮轴衬套 Camshaft bush
5 190003989289 碗形塞 Core hole plug
6 VG1246010044 碗形塞 Core hole plug
7 VG1246010041 碗形塞 Core hole plug
8 VG1246010046 碗形塞 Core hole plug
9 VG1246010048 碗形塞 Core hole plug
10 VG1246010032 定位销 Positioning pin
11 VG1246010033 主轴承螺栓 Main bearing bolt
12 190003989204 碗形塞 Core hole plug
13 190003989480 碗形塞 Core hole plug
14 VG1540040011 油孔堵塞 Screw plug
15 VG1246010093 气缸盖螺栓 Stud
16 Q5211016 圆柱销 Dowel pin
17 Q617B18 六角头螺塞 Screw plug
18 VG9003080007 复合密封垫圈 Sealing washer
19 VG1246010129 内六角螺塞 Socket plug
20 VG9003080003 复合密封垫圈 Sealing washer
21 VG1246010028 气缸套 Cylinder liner
22 VG1246010055 螺塞 Screw plug
23 VG1400010032 密封圈 O-ring
24 VG1246010031 O型密封圈 O-ring
25 Q150B08125 六角头螺栓 Hex head bolt
26 Q41808 波形弹簧垫圈 Spring washer
27 VG1246010034 主轴瓦（上瓦） Crankshaft main bearing(top)
28 VG1246010035 主轴瓦（下瓦） Crankshaft main bearing(down)
29 VG1246010036 止推片付 Thrust washers
30 VG1246010039 喷嘴组件 Oil injection nozzle assembly
31 Q5280308 弹性圆柱销 Spring dowel pin
32 190003962621 空心螺栓 Hollow bolt
33 VG9003080005 复合密封垫圈 Sealing washer
34 VG1246010001 前罩壳 Front cover
35 Q5210820 圆柱销 Dowel pin
36 Q1840835 六角法兰面螺栓 Hex head bolt
37 Q1840850 六角法兰面螺栓 Hex head bolt
38 VG1246010005 前油封 Front crankshaft oil seal
39 VG9003813543 双头螺柱 Stud
40 Q1201045F3 双头螺柱 Stud
41 Q340B10 六角螺母 Hexagon nut
42 Q40310 弹簧垫圈 Spring washer
43 AZ1246010019 飞轮壳 Flywheel housing
44 Q150B1240TF2 六角头螺栓 Hex head bolt
45 Q150B12120TF2
