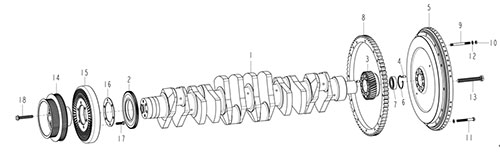

| NO. | Part No. | Chinese Name | Part name |
| 1 | AZ1246020013 | 曲轴 | Crankshaft |
| 2 | VG1246020012 | 曲轴前齿轮 | Front crankshaft gear |
| 3 | VG1246020011 | 曲轴后齿轮 | Rear crankshaft gear |
| 4 | Q5210816 | 圆柱销 | Dowel pin |
| 5 | AZ1246020005A | 飞轮 | Flywheel |
| 6 | Q43062 | 孔用弹性挡圈 | Circlip |
| 7 | 190003311416 | 球轴承 | Ball bearing |
| 8 | VG2600020208 | 飞轮齿圈 | Ring gear |
| 9 | Q1201090F3 | 双头螺柱 | Stud |
| 10 | Q340B10 | 六角螺母 | Hexagon nut |
| 11 | Q150B1085 | 六角头螺栓 | Hex head bolt |
| 12 | Q41810 | 波形弹性垫圈 | Spring washer |
| 13 | VG1246020010 | 飞轮螺栓 | Flywheel bolt |
| 14 | VG1246020001 | 曲轴皮带轮 | Crankshaft belt pulley |
| 15 | VG1246020002 | 硅油减震器 | Vibration damper |
| 16 | VG1246020003 | 垫环 | Washer |
| 17 | Q150B1030 | 六角头螺栓 | Hex head bolt |
| 18 | VG1246020004 | 六角头螺栓 | Hex head bolt |
