WP10 THREE SERIES

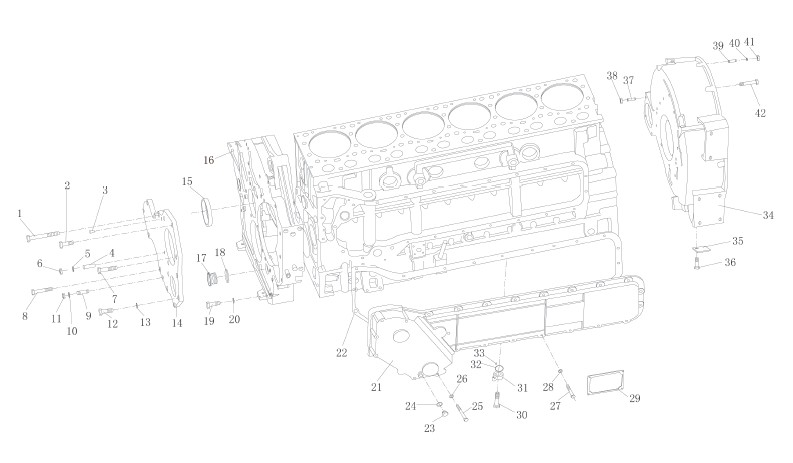

CRANKCASE（1）

2015-11-24 00:21:53

 NO. Part No. Chinese Name Part Name
1 90003800571 六角头螺栓 Hexagon bolt
2 90003802523 六角头螺栓 Hexagon bolt
3 90003901604 圆柱销 Pin
4 90003813429 圆柱销 Pin
5 90003932023 波形圆柱垫圈 Spring washer
6 90003871252 1型六角头螺母 Hexagon nut(1)
7 90003802511 六角头螺栓 Hexagon bolt
8 90003802424 六角头螺栓 Hexagon bolt
9 90003813527 双头螺柱 Stud
10 90003932025 鞍形弹性垫圈 Spring washer
11 90003871305 1型六角头螺母 Hexagon nut(1)
12 90003802523 六角头螺栓 Hexagon bolt
13 90003932025 鞍形弹性垫圈 Spring washer
14 612600011777 端盖 End cover
15 90003120602 密封圈 Seal ring
16 612600011776 正时齿轮室 Timing gear case
17 90003962051 六角头螺塞 Hexagon screw plug
18 90003098086 密封垫圈 Seal ring
19 90003832524 内六角圆柱头螺钉 Hexagon bolt
20 90003932025 鞍形弹性垫圈 Spring washer
21 614010083B 机油冷却器盖 Cover
22 614010084B 机油冷却器盖垫片 Joint
23 90003962020 六角螺塞 Bolt
24 90003098014 密封垫圈 Seal ring
25 90003800467
90003800465		 六角头螺栓 Hexagon bolt
26 90003932023 波形弹性垫圈 Spring washer
27 90003802424 六角头螺栓 Hexagon bolt
28 90003932023 波形弹性垫圈 Spring washer
29 612600011550 铭牌 Nameplate
30 90003962621 空心螺栓 Bolt
31 612600010659 喷嘴组件 Spraying nozzle
32 90003098015 密封垫圈 Seal ring
33 90003909603 弹性圆柱销 Pin
34 612600011088 飞轮壳 Flywheel
35 612630030066 观察孔盖 Cover
36 90003802511 六角头螺栓 Hexagon bolt
37 90003813527 双头螺柱 Stud
38 90003888452 2型金属六角锁紧螺母 Hexagon nut(2)
39 90003813537 双头螺柱 Stud
40 90003931122 弹簧垫圈 Spring washer
41 90003871305 1型六角头螺母 Hexagon nut(1)
42 61500010101 飞轮壳螺栓 Bolt
61500010062 飞轮壳螺栓 Bolt
