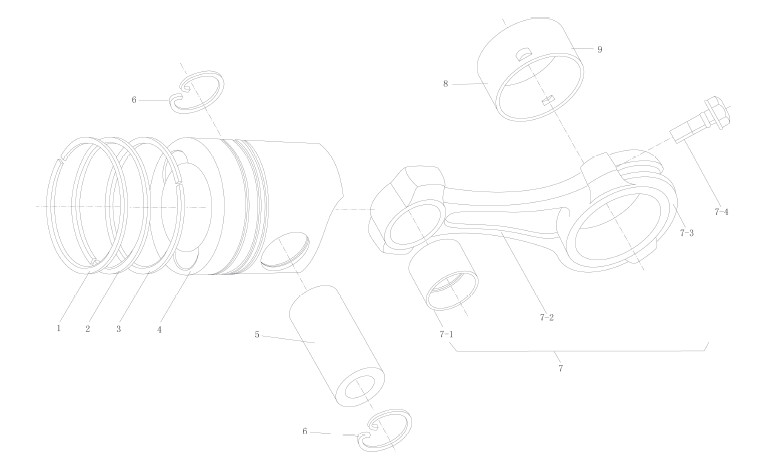

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600030035 | 梯形环 | Double ladderring |
| 2 | 612600030036 | 扭曲锥面环 | Conical ring |
| 3 | 612600030037 | 螺旋撑簧油环 | Spiral spring oil ring |
| 4 | 612600030034 | 活塞 | Piston |
| 5 | 61560030013 | 活塞销 | Piston pin |
| 6 | 81560030012 | 活塞销挡圈 | Ring |
| 7 | 61500030009 | 连杆总成 | Connecting rod |
| 7-1 | 61500030077 | 连杆衬套 | Connecting bush |
| 7-2 | 61500030008 | 连杆体 | Connector body |
| 7-3 | 61500030022 | 连杆盖 | Connector cover |
| 7-4 | 81500030023 | 连杆螺栓 | Connector bolt |
| 8 | 612600030020 | 连杆上瓦 | Shell pin |
| 9 | 61560030033 | 连杆下瓦 | Shell pin |
