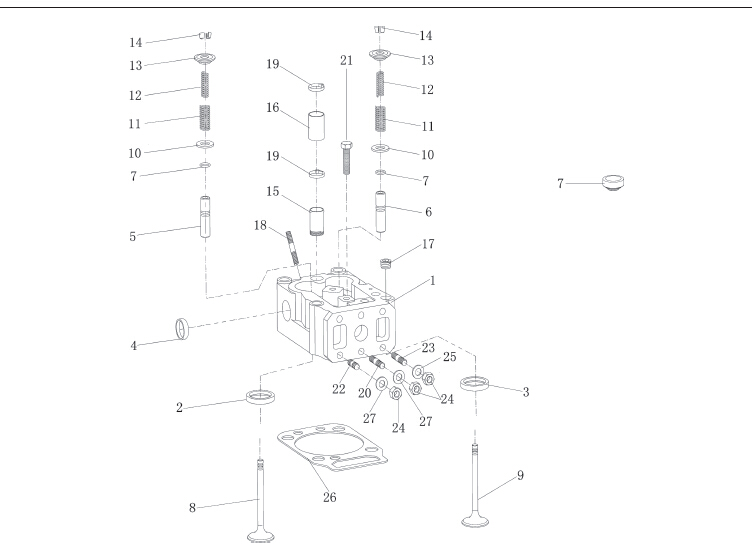

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 15040081 | 气缸盖 | CYLINDER HEAD |
| 12273865 | 气缸盖 | CYLINDER HEAD | |
| 2 | 12188202 | 进气门座 | VALVE SEAT INTAKE |
| 3 | 12188201 | 排气门座 | VALVE SEAT EXHAUST |
| 12188322 | 排气门座 | VALVE SEAT EXHAUST | |
| 4 | 1152710 | 碗形塞 | COVER |
| 5 | 13026871 | 气门导管（进） | VALVE GUIDE |
| 12189512 | 气门导管（进） | VALVE GUIDE | |
| 6 | 13026872 | 气门导管（排） | VALVE GUIDE |
| 12159459 | 气门导管（排） | VALVE GUIDE | |
| 7 | 13023391 | 气门阀杆密封套 | AIRPROOF COVER |
| 8 | 12159606 | 进气门 | INLET VALVE |
| 12159604 | 进气门 | INLET VALVE | |
| 9 | 12159608 | 排气门 | EXHAUST VALVE |
| 12159605 | 排气门 | EXHAUST VALVE | |
| 10 | 13024293 | 气门弹簧下座 | SPRING CAP |
| 11 | 1222051 | 气门弹簧 | VALVE SPRING |
| 12 | 1222009 | 气门弹簧 | VALVE SPRING |
| 13 | 12164645 | 气门弹簧座 | SPRING CAP |
| 14 | 12164698 | 气门锁夹 | VALVE COLLET |
| 15 | 12188750 | 管接头 | PIPE CONNECTION |
| 16 | 12200327 | 软管 | TUBING CONNECTION |
| 17 | 1104736 | 内六角锥形螺塞 | SCREW PLUG |
| 18 | 1152538 | 双头螺柱 | STUD |
| 19 | 12151665 | 双头螺柱 | STUD |
| 20 | 1152500 | 软管卡箍 | HOST CLIP |
| 21 | 1112445 | 双头螺柱 | STUD |
| 22 | 1152502 | 六角头螺栓 | HEXAGON BOLT |
| 1113472 | 双头螺柱 | STUD | |
| 23 | 1113465 | 双头螺柱 | STUD |
| 24 | 1152504 | 双头螺柱 | STUD |
| 13020378 | 六角螺母 | NUT | |
| 25 | 1143995 | 六角螺母 | NUT |
| 26 | 12163182 | 垫片 | PLAIN WASHER |
| 12272401 | 气缸盖密封垫片 | CYLINDER HEAD GASKET | |
| 12273264 | 气缸盖密封垫片 | CYLINDER HEAD GASKET | |
| 27 | 12167216 | 垫片 | PLAIN WASHER |
