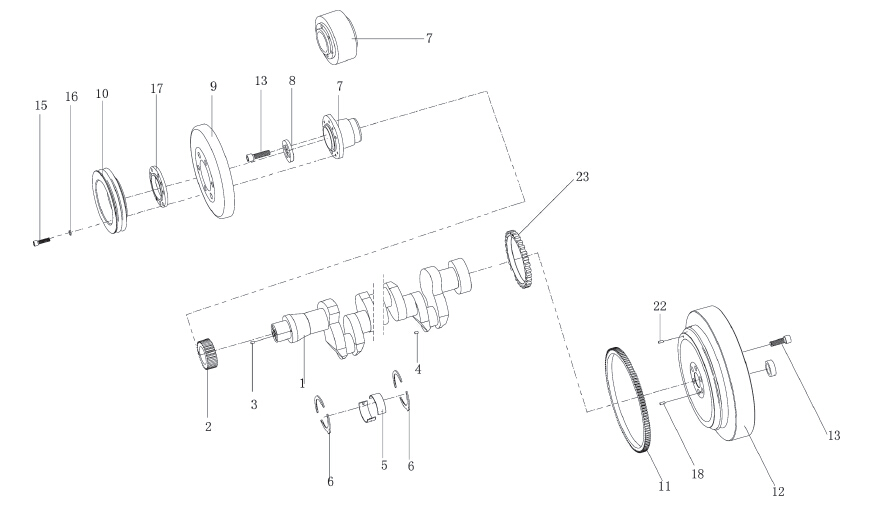

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 12272491 | 曲轴 | CRANKSHAFT |
| 12272490 | 曲轴 | CRANKSHAFT | |
| 12272497 | 曲轴 | CRANKSHAFT | |
| 2 | 12273248 | 曲轴正时齿轮 | TIMING GEAR |
| 3 | 1115416 | 弹性圆柱销 | STRAIGHT PIN |
| 4 | 12151364 | 堵塞 | PLUG |
| 5 | 12160569 | 主轴瓦组件 | MAIN BEARING |
| 6 | 12160535 | 止推片组件 | THRUST RING |
| 7 | 12190647 | 轮毂 | HUB |
| 12188194 | 轮毂 | HUB | |
| 12160595 | 轮毂 | HUB | |
| 8 | 12160534 | 垫片 | PLAIN WASHER |
| 9 | 12273121 | 减震器 | VIBRATION DAMPER |
| 10 | 13024580 | 曲轴皮带轮 | V-GROOVED PULLEY |
| 13024343 | 曲轴皮带轮 | V-GROOVED PULLEY | |
| 13024077 | 曲轴皮带轮 | V-GROOVED PULLEY | |
| 13025097 | 曲轴皮带轮 | V-GROOVED PULLEY | |
| 13020304 | 曲轴皮带轮 | V-GROOVED PULLEY | |
| 13024506 | 曲轴皮带轮 | V-GROOVED PULLEY | |
| 13023418 | 曲轴皮带轮 | V-GROOVED PULLEY | |
| 11 | 12166719 | 齿圈 | GEAR RIM |
| 12 | 13020321 | 齿圈 | GEAR RIM |
| 13022766 | 飞轮 | FLYWHEEL | |
| 13022598 | 飞轮 | FLYWHEEL | |
| 13025661 | 飞轮 | FLYWHEEL | |
| 13024791 | 飞轮 | FLYWHEEL | |
| 13022744 | 飞轮 | FLYWHEEL | |
| 13024273 | 飞轮 | FLYWHEEL | |
| 13022683 | 飞轮 | FLYWHEEL | |
| 13028547 | 飞轮 | FLYWHEEL | |
| 13022883 | 飞轮 | FLYWHEEL | |
| 13 | 1152870 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 1110847 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW | |
| 13024381 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW | |
| 1112682 | 六角头螺栓 | HEXAGON BOLT | |
| 1110843 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW | |
| 15 | 1138747 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW |
| 1110571 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW | |
| 1110659 | 内六角圆柱头螺钉 | CHEESE HEAD SCREW | |
| 16 | 1178365 | 弹簧垫圈 | SPRING LOCK WASHER |
| 17 | 13023754 | 联接盘 | ADAPTER |
| 12190646 | 联接盘 | ADAPTER | |
| 18 | 1125638 | 弹性圆柱销 | STRAIGHT PIN |
| 22 | 12190554 | 定位销 | PIN |
| 23 | 12166718 | 二级平衡机构齿圈 | GEAR RIM |
