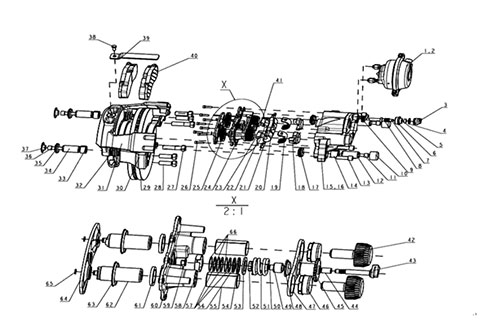

| NO. | Part No. | Quantity | Part Name | Chinese name |
| 0 | AC71414400611 | 1 | Second Generation Applied Air Disc Brake | 第二代应用型盘式制动器 |
| 1 | WG9100360410 | 1 | Front-left Air Chamber 22 Inch | 前左制动气室22″(万安汽车制动系统) |
| 2 | WG9100360420 | 1 | Front-right Air Chamber 22 Inch | 前右制动气室22″(万安汽车制动系统) |
| 3 | WG9100443009 | 2 | Manual Override Stem Cap | 橡胶帽(青岛海力威) |
| 4 | AZ9100443010 | 2 | Manual Override Stem Retainer | 手调挡圈 |
| 5 | WG9100443011 | 2 | Manual Override Stem Seal | 密封圈(青岛海力威) |
| 6 | WG9100443008 | 2 | Manual Override Stem Saddle | 手调座(浙江国昌) |
| 7 | WG9100443041 | 2 | Manual Override Stem Shaft | 手调轴(恒信精密) |
| 8 | WG9100443043 | 2 | Manual Override Stem Spring | 弹簧(杭州弹簧) |
| 9 | WG9100443042 | 2 | Manual Override Stem Gear | 手调齿轮(恒信精密) |
| 10 | AZ9100443016 | 4 | End Cap | 滑销盖(钳体侧) |
| 11 | Q218B1450TF2 | 2 | Guide Sleeve Bolt | 内六角圆柱头螺钉 |
| 12 | AZ9100443013 | 2 | Guide Sleeve | 滑销 |
| 13 | Q218B1645TF2 | 8 | Return Screw | 内六角圆柱头螺钉 |
| 14 | WG9100443014 | 4 | Housing Guide Sleeve Bush | 滑销衬套(钳体侧,荣成远海) |
| 15 | AZ9100443301 | 1 | Housing(left) | 钳体(左) |
| 16 | AZ9100443401 | 1 | Housing(right ) | 钳体(右) |
| 17 | WG9100443017 | 4 | Housing Guide Sleeve Excluder | 滑销保护套(青岛海力威) |
| 18 | AZ9100443023 | 4 | Half Bearing Saddle | 半月轴承座 |
| 19 | WG9100443022 | 4 | Half Bearing Assembly | 半月轴承总成(常州光洋) |
| WG9100443030 | Operation Shaft Assembly | 杠杆总成 | ||
| 20 | WG9100443031 | 2 | Operation Shaft | 杠杆(台州山源) |
| 21 | WG9100443033 | 4 | Bearing | 衬垫(荣成远海) |
| 22 | WG9100443034 | 4 | Rivet | 铆钉(台州山源) |
| 23 | AZ9100443021 | 4 | Roller | 圆柱销 |
| 24 | WG9100443024 | 2 | Gasket | 橡胶垫片(青岛海力威) |
| 25 | WG9100443027 | 4 | Piston Dust Excluder | 活塞防尘套(青岛海力威) |
| 26 | Q218B0825TF2 | 16 | Piston Housing Assembly Bolt | 内六角圆柱头螺钉 |
| 27 | Q151B2070TF2 | 4 | Brige Screw | 六角头螺栓 |
| 28 | Q151B2050TF2 | 8 | Carrier Screw | 六角头螺栓 |
| 29 | WG9100443001 | 2 | Disc | 制动盘(莱州华汽) |
| 30 | AZ9100443002 | 2 | Carrier | 托架 |
| 31 | AZ9100443004 | 2 | Brige | 钳体桥 |
| 32 | WG9100443017 | 4 | Brige Guide Sleeve Excluder | 滑销保护套(青岛海力威) |
| 33 | WG9100443019 | 4 | Brige Guide Sleeve Bush | 滑销衬套(钳体桥侧,荣成远海) |
| 34 | AZ9100443013 | 4 | Bride Guide Sleeve | 滑销 |
| 35 | WG9100443017 | 4 | Brige Guide Sleeve Excluder | 滑销保护套(青岛海力威) |
| 36 | Q218B1450TF2 | 4 | Guide Sleeve Bolt | 内六角圆柱头螺钉 |
| 37 | AZ9100443018 | 4 | End Cap | 滑销盖(钳体桥侧) |
| 38 | Q150B1020TF2 | 2 | Screw | 六角头螺栓 |
| 39 | AZ9100443006 | 2 | Pad Retainer | 压板 |
| 40 | WG9100443050 | 4 |
