2015-04-14 18:35:15

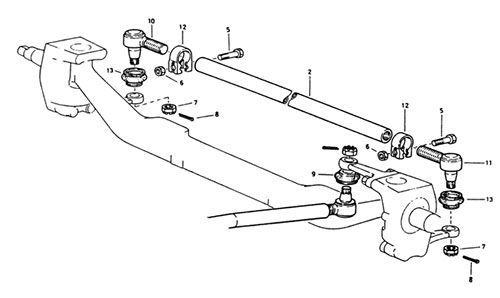

| NO | PART NO | Quantity | Part Name | 名 称 |
| 0 | AC71414300301 | 1 | Tie rod C | 转向横拉杆总成 |
| 2 | AZ9125430050-1 | 1 | Tie rod | 转向横拉杆 |
| 5 | M12×1.5-GB6185 | 2 | nut | 螺母M12×1.5-GB6185 |
| 6 | M12×1.5×65-GB6785 | 2 | bolt | 螺栓M12×1.5×65-GB6785 |
| 7 | Q387B20T15 | 1 | Gastle nut | 六角开槽螺母 |
| 8 | Q5004036 | 1 | Cotter pin | 开口销 |
| 9 | AZ9100430218-113 | Packing bellows | 密封套 | |
| 10 | AZ9100430218-002 | 1 | Ball joint pight | 右球铰接头 |
| 11 | AZ9100430218-001 | 1 | Ball joint teft | 左球铰接头 |
| 12 | AZ9100430001 | 2 | Clip | 管夹 |
| 13 | AZ9100430218-113 | 2 | Packing bellows | 密封套 |
