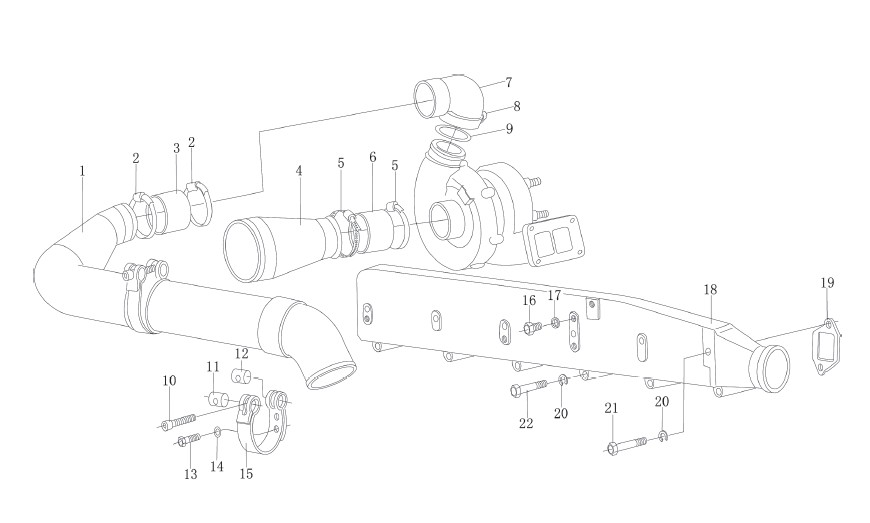

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61560110051B | 管子总成 | Pipe ass’y |
| 2 | 90003989312 | 软管卡箍 | Clamp |
| 3 | 612600110824 | 带纤维夹层橡胶软管 | Pipe |
| 612600111543 | 带纤维夹层橡胶软管 | Pipe | |
| 4 | 612600110874 | 压气机进气管 | Air inake pipe |
| 5 | 90003989315 | 软管卡箍 | Clamp |
| 6 | 81560110220 | 胶管 | Rubber pipe |
| 7 | 61560110165 | 连接弯管 | Pipe |
| 8 | 61560110226 | 夹子 | Clip |
| 9 | 90320035 | 密封圈 | Seal ring |
| 10 | 90003862462 | 内六角圆柱头螺钉 | Screw |
| 11 | 209190017 | 拉紧销 | Pin |
| 12 | 1700550013 | 张紧销 | Pin |
| 13 | 90003802415 | 六角头螺栓 | Bolt |
| 90003802411 | 六角头螺栓 | Bolt | |
| 14 | 609E110036 | 调整垫圈 | Washer |
| 15 | 61560110021 | 卡箍带 | Clamp |
| 16 | 90003962014 | 六角头螺塞 | Plug |
| 17 | 90003098010 | 密封垫圈 | Seal ring |
| 18 | 61560110131 | 进气管总成 | Air intake pipe ass’y |
| 19 | 61500110024 | 进气管垫片 | Air intake plpe shim |
| 20 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 21 | 614110064 | 进气管紧固螺栓 | Bolt |
| 90003800497 | 六角头螺栓 | Bolt | |
| 22 | 90003800465 | 六角头螺栓 | Bolt |
