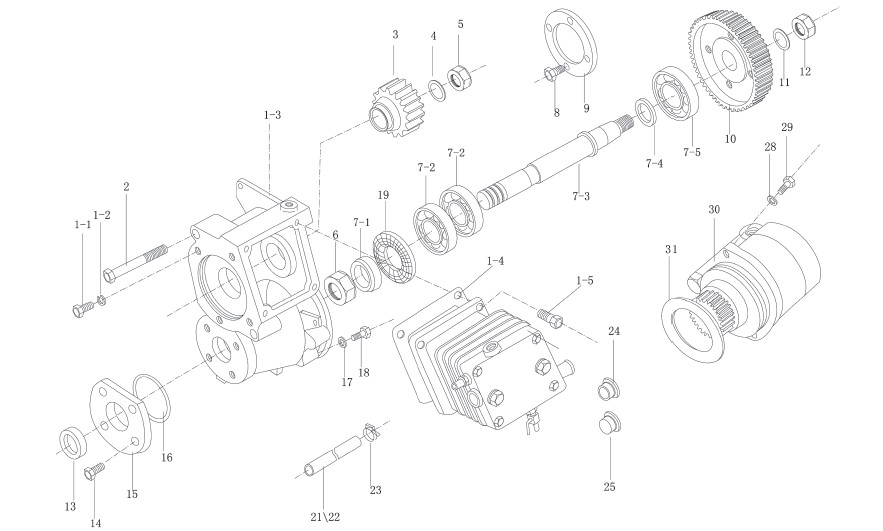

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600130177 | 水冷空压机 | Aircompussor |
| 1-1 | 90003802411 | 六角头螺栓 | Bolt |
| 1-2 | 90003930261 | 小垫圈 | Washer |
| 1-3 | AZ1560130063 | 空压机曲轴箱 | Crankcase |
| 1-4 | 61500130080 | 垫片 | Shim |
| 1-5 | 90003802438 | 六角头螺栓 | Bolt |
| 2 | 90003802561 | 六角头螺栓 | Bolt |
| 90003800569 | 六角头螺栓 | Bolt | |
| 3 | 612600130173 | 空气压缩机齿轮 | Gear |
| 4 | 609070161 | 支承环 | Flat washer shaft |
| 5 | 612600130001 | 六角螺母 | Nut |
| 6 | 612600130046 | 夹紧螺母 | Nut |
| 7 | 612600130124 | 传动轴总成 | Drive shaft |
| 7-1 | 612600130047 | 衬套 | Bush |
| 7-2 | 61500080158 | 径向止推滚珠轴承 | Beating |
| 7-3 | 612600130122 | 传动轴 | Drive shaft |
| 7-4 | 612600130123 | 压紧块 | Block |
| 7-5 | 90003320154 | 滚珠轴承 | Bearing |
| 8 | 90003802432 | 六角头螺栓 | Bolt |
| 9 | 61500080165 | 盖 | Cover |
| 10 | AZ1560130064 | 喷油泵齿轮 | Gear |
| 11 | 409020045 | 垫片 | Shim |
| 12 | 612600130001 | 六角螺母 | Nut |
| 13 | 90003070092 | 油封 | Oil seal |
| 14 | 90003802415 | 六角头螺栓 | Bolt |
| 15 | 61500130097 | 油封座 | Oil seal seat |
| 16 | 192320002 | 密封圈 | Seal ring |
| 17 | 90003932023 | 垫圈 | Washer |
| 18 | 90003802419 | 六角头螺栓 | Bolt |
| 19 | 612600130073 | 挡油盘 | Plate |
| 20 | 90003098014 | 密封垫圈 | Seal washer |
| 21 | 612600130025 | 带纤维央层橡胶软管 | Rubber pipe |
| 22 | 612600130027 | 带纤维夹层橡胶软管 | Rubber pipe |
| 23 | 90003989336 | 软管卡箍 | Clamp |
| 24 | B29114 | 堵盖 | Cover |
| 25 | B29112 | 堵盖 | Cover |
| 26 | 90003800035 | 六角头螺栓 | Bolt |
| 27 | 90003800458 | 六角头螺栓 | Bolt |
| 28 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 29 | 90003802438 | 六角头螺栓 | Bolt |
| 30 | 61500130037 | 液压泵 | Hydraulic pump |
| 31 | 81500130068 | 密封圈 | Seal ring |
