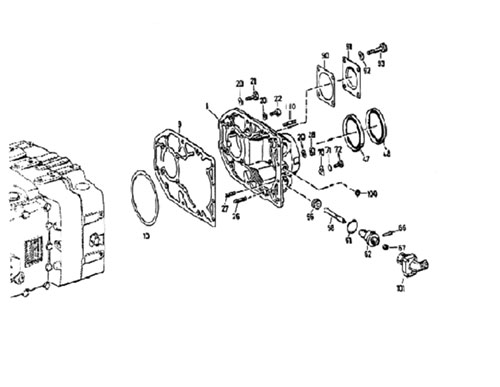

| NO. | Part No. | Part Name | Quantity |
| 1 | 1269338095 | Speedometer cover | 1 |
| 9 | 1269338030 | Gasket | 1 |
| 10 | 0769140011 | Spacer disc set | 1 |
| 20 | 0630302091 | Spring washer | 12 |
| 21 | 0636015127 | Screw | 6 |
| 22 | 0636015114 | Screw | 2 |
| 26 | 0636610087 | Stud | 2 |
| 27 | 0636610079 | Stud | 4 |
| 28 | 0636006022 | Nut | 1 |
| 28/A | 0637006022 | Nut | 1 |
| 47 | 734310113 | Shaft seal | 1 |
| 48 | 0734300093 | Shaft seal | 1 |
| 56 | 1250308057 | Speedometer pinion | 1 |
| 58 | 1250308007 | Speedometer shaft | 1 |
| 61 | 0634316057 | O-ring | 1 |
| 62 | 1250308017 | Speedometer connector | 1 |
| 66 | 0631306713 | Parallet pin | 1 |
| 67 | 0634300185 | Shaft seal ring | 1 |
| 71 | 0125308131 | Screw | 1 |
| 72 | 0737006978 | Hexagon nut | 1 |
| 90 | 1238308201 | Gasket | 1 |
| 91 | 1238308165 | Cover | 1 |
| 93 | 0636011026 | Screw | 1 |
| 100 | 0636301048 | Screw plug | 1 |
| 101 | 0730101088 | Intermdiate gearbox | 1 |
