NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.1263E+11 |
气缸盖 |
The cylinder cover |
|
2 |
6.1263E+11 |
气缸盖主螺栓 |
Cylinder head bolt |
|
3 |
6.1263E+11 |
气缸盖罩 |
Cylinder cover |
|
4 |
6.1263E+11 |
气缸盖衬垫 |
Cylinder head gasket |
|
5 |
6.1263E+11 |
气缸盖罩衬垫 |
Cylinder head cover gasket |
|
6 |
6.1263E+11 |
吊环夹紧块 |
Ring clamping block |
|
7 |
61200040023 |
夹紧块 |
Clamping block |
|
8 |
61200040034 |
带肩螺母 |
Shoulder nut |
|
9 |
90003989480 |
碗形塞 |
Bowl plug |
|
10 |
90003989725 |
碗形塞 |
Bowl plug |
|
11 |
6.1263E+11 |
堵塞 |
Jam |
|
12 |
6.1263E+11 |
放气管总成 |
Air vent pipe assembly |
|
13 |
6.12639E+11 |
空心螺栓 |
Hollow bolt |
|
14 |
614010388 |
吊环螺钉 |
Screw ring |
|
15 |
61800050151 |
气门杆密封套 |
Valve stem seal sleeve |
|
16 |
90003098010 |
密封垫片 |
Sealing gasket |
|
17 |
90003800023 |
六角头螺栓 |
Hexagon headed bolt |
|
18 |
90003932023 |
波形弹性垫圈 |
Wave spring washer |
|

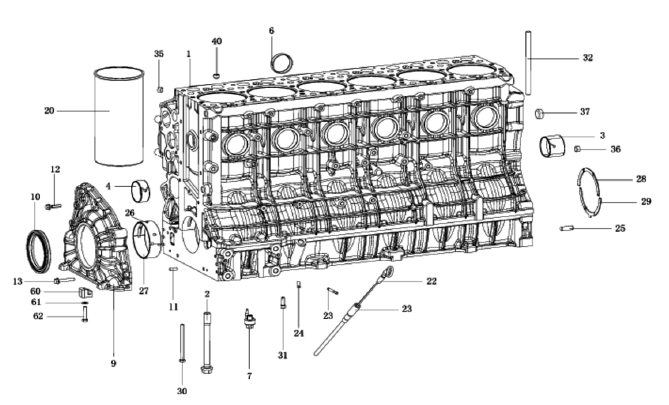

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
6.1263E+11 |
气缸体予装配 |
Cylinder block assembly |
|
2 |
6.1263E+11 |
主轴承螺栓 |
Main bearing bolt |
|
3 |
6.1263E+11 |
后端凸轮轴衬套 |
Rear camshaft bushing |
|
4 |
61560010029 |
凸轮轴衬套 |
Cam shaft bushing |
|
5 |
6.12639E+11 |
碗形塞 |
Bowl plug |
|
6 |
6.12639E+11 |
碗形塞 |
Bowl plug |
|
7 |
6.1263E+11 |
喷嘴总成 |
Nozzle assembly |
|
8 |
6.1263E+11 |
密封垫 |
A seal |
|
9 |
6.1263E+11 |
前端盖 |
Front cover |
|
10 |
6.1263E+11 |
曲轴前油封 |
Crankshaft front oil seal |
|
11 |
90003901420 |
圆柱销 |
Cylindrical pin |
|
12 |
6.12639E+11 |
带法兰的六角头螺栓 |
Six angle head bolts with flange |
|
13 |
6.12639E+11 |
带法兰的六角头螺栓 |
Six angle head bolts with flange |
|
14 |
6.1263E+11 |
O 型密封圈 |
O type sealing ring |
|
15 |
90003802411 |
六角头螺栓 |
Hexagon headed bolt |
|
16 |
6.1263E+11 |
机油冷却器盖总成 |
Oil cooler cover assembly |
|
17 |
6.12639E+11 |
O 型密封圈 |
O type sealing ring |
|
18 |
6.12639E+11 |
六角头螺栓 |
Hexagon headed bolt |
|
19 |
612639000067 |
螺塞 |
Plug |
|
20 |
612630010055 |
气缸套 |
