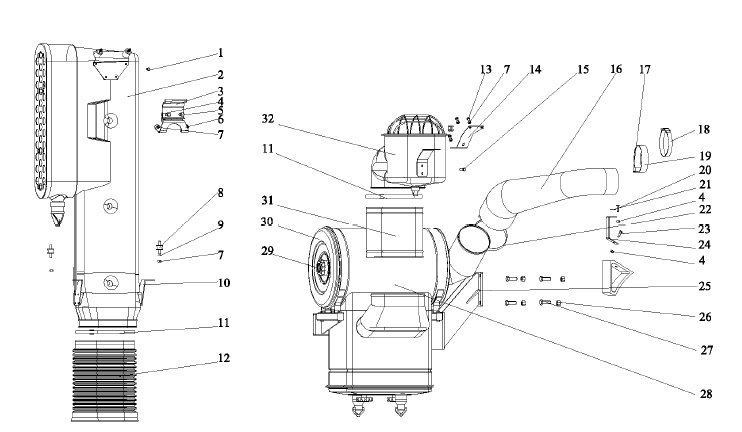

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
Q2610816 |
六角头自攻锁紧螺钉 |
Screw |
|
2 |
DZ93259190005 |
进气管带支架总成 |
Intake pipe assembly |
|
3 |
81.62940.5011 |
支架 |
Bracket |
|
4 |
Q33210 |
II 型全金属六角锁紧螺母 |
Hex. nut |
|
5 |
Q150B1030 |
六角头螺栓 |
Hex screw |
|
6 |
DZ9112196038 |
蝴蝶支架总成 |
Bracket |
|
7 |
Q340B08 |
I 型六角螺母 |
Hex nut |
|
8 |
81.96210.0289 |
缓冲块 |
Cushion block |
|
9 |
Q40308 |
弹簧垫圈 |
Spring washer |
|
10 |
DZ9112196034 |
扁管托架 |
Bracket |
|
11 |
DZ9114190934 |
卡箍（中） |
Clip |
|
12 |
DZ93259190006 |
波纹管总成 |
Screw pipe |
|
13 |
Q150B0820 |
六角头螺栓 |
Hex screw |
|
14 |
DZ9112190134 |
支架（四） |
Bracket |
|
15 |
Q2610860 |
六角头自攻锁紧螺钉 |
Screw |
|
16 |
DZ9112190079 |
空气软管 |
Hose |
|
17 |
1.991E+11 |
隔环 |
Partition ring |
|
18 |
DZ9003532122 |
T 型卡箍 |
Clip |
|
19 |
1.99112E+11 |
软管卡箍 |
Tube clip |
|
20 |
Q150B1020 |
六角头螺栓 |
Hex screw |
|
21 |
Q40310 |
弹簧垫圈 |
Spring washer |
|
22 |
DZ9003532166 |
T 型卡箍 |
Clip |
|
23 |
Q150B1025 |
六角头螺栓 |
Hex screw |
|
24 |
DZ9112190055 |
夹板 |
Plywood |
|
25 |
DZ9112196033 |
垫板 |
Plate |
|
26 |
Q33214 |
II 型全金属六角锁紧螺母 |
Hex. nut |
|
27 |
Q150B1430 |
六角头螺栓 |
Hex screw |
|
28 |
DZ93259190041 |
沙漠空滤器总成 |
Air cleaner |
|
29 |
1.612E+11 |
干式空滤器堵塞开关 |
Stopper switch |
|
30 |
1.69101E+11 |
保护罩 |
Protect cover |
|
31 |
DZ93259190049 |
进气胶管 |
Hose |
|
32 |
DZ93259190009 |
底座总成 |
Pedestal assembly |
