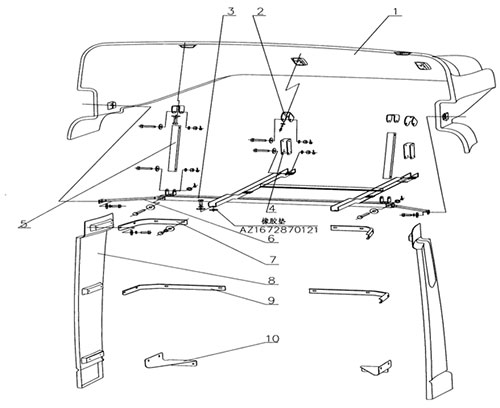

| NO. | Part No. | Part Name | Quantity |
| 7 | WG1644870013 | Top bracket left | 1 |
| 7 | WG1644870019 | Top bracket right | 1 |
| 7a | Q150B0820 | Screw | 8 |
| 7b | Q40208 | Washer | 8 |
| 7c | Q40308 | Spring washer | 8 |
| 8 | WG1644870111 | Side wind sheet right | 1 |
| 8a | WG1644870012 | Side wind sheet left | 1 |
| 9 | WG1644870014 | Middle bracket | 2 |
| 9a | Q150B0820 | Screw | 8 |
| 9b | Q40208 | Washer | 8 |
| 9c | Q40308 | Spring washer | 8 |
| 10 | WG1644870015 | Bottom bracket right | 1 |
| 10a | WG1644870018 | Bottom bracket left | 1 |
| 10b | Q150B0820 | Screw | 8 |
| 10c | Q40208 | Washer | 8 |
| 10d | Q40308 | Spring washer | 8 |
| 11 | AZ1630230125 | Rubber pad | 4 |
| 12 | AZ1672870121 | Rubber pad | 12 |
