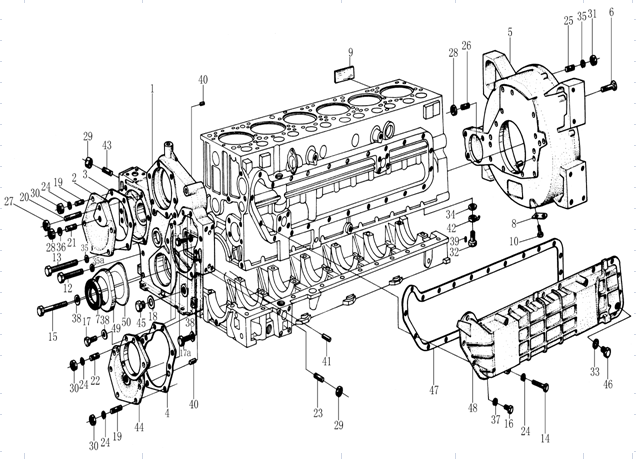

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ1500010932 | Gear case | 1 |
| 1/A | 61557010008 | Gear case | 1 |
| 2 | VG1560010069 | Cover for air compressor | 1 |
| 2/A | VG2600010830 | Cover for air compressor | 1 |
| 3 | VG14010040 | Joint for VG1560010069 | 1 |
| 4 | VG14010070 | Joint for VG1500010008A | 1 |
| 5 | AZ1500010012 | Flywheel housing | 1 |
| 6 | VG1500010101 | Screw | 6 |
| 7 | VG1500010037 | Front oil seal | 1 |
| 7/A | VG1047010038 | Front oil seal | 1 |
| 8 | VG1800210011 | Cover | 1 |
| 9 | VG2600010193 | Plaque | 1 |
| 10 | 190003802511 | Screw | 3 |
| 11 | 190003802523 | Screw | 3 |
| 12 | 190003932024 | Screw | 1 |
| 13 | 190003802576 | Screw | 1 |
| 14 | 190003800467 | Screw | 5 |
| 15 | 190011260039 | Screw | 1 |
| 16 | 190003802424 | Screw | 19 |
| 17 | 190003862524 | Screw | 1 |
| 17a | 190003862532 | Screw | 1 |
| 18 | 190003098086 | Joint | 1 |
| 18/A | VG2600010735 | Joint | 1 |
| 19 | 190003813429 | Stud | 12 |
| 20 | 190003813470 | Stud | 3 |
| 21 | 190003811531 | Stud | 1 |
| 22 | 190003813443 | Stud | 1 |
| 23 | 190003813628 | Stud | 6 |
| 24 | 190003932023 | Spring washer | 17 |
| 25 | 190003813537 | Stud | 10 |
| 26 | 190003813527 | Stud | 3 |
| 27 | 190003888451 | Nut | 2 |
| 28 | 190003888452 | Nut | 5 |
| 29 | 190003888453 | Nut | 8 |
| 30 | 190003871252 | Nut | 16 |
| 31 | 190003871305 | Nut | 12 |
| 32 | 190003962621 | Hollow screw | 6 |
| 33 | VG9003080005 | Sealing washer | 1 |
| 34 | VG9003080005 | Sealing washer | 6 |
| 35 | 190003932024 | Spring washer | 1 |
| 35a | 190003931122 | Spring washer | 21 |
| 36 | 190003930012 | Gasket | 1 |
| 37 | 190003932023 | Washer | 1 |
| 38 | 190003932025 | Spring washer | 2 |
| 39 | 190003909603 | Column pin | 6 |
| 40 | 190003901507 | Column pin | 4 |
| 41 | 190003900085 | Column pin | 6 |
| 42 | VG2600010659 | Spraying nozzle | 6 |
| 43 | 190011620016 | Stud | 2 |
| 44 | VG1500010008A | Cover | 1 |
| 45 | 190003962051 | Screw | 1 |
| 46 | 190003962020 | Screw plug | 1 |
| 47 | VG14010084B | Joint | 1 |
| 47/A | VG1540010015A | Joint | 1 |
| 48 | VG14010083B | Cover | 1 |
| 48/A | VG1540010014A | Cover | 1 |
| 49 | VG2600010928 | Front oil seal seat | 1 |
| 50 | VG2600010934 | Shim | 1 |
