WD615 SERIES EURO 2

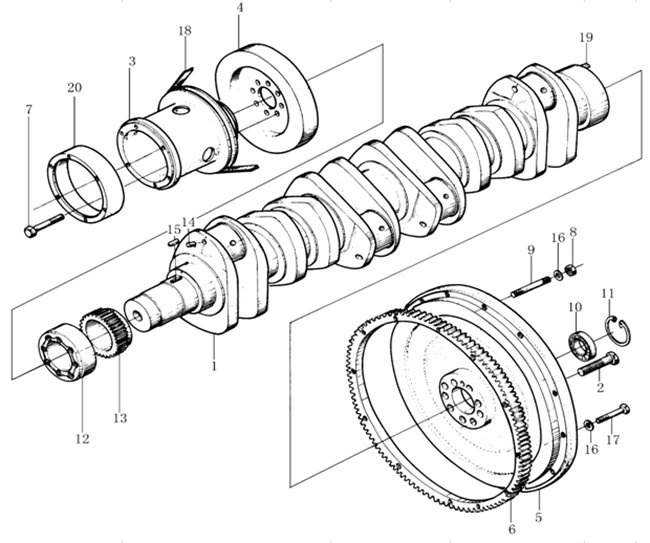

WD615 CRANKSHAFT

2016-09-27 10:03:24



 NO. Part No. Part Name Quantity
 --- 161560020029 Crankshaft assembly 1
1 161560020024 Crank shaft 1
2 VG1500020046 Screw 9
3 VG1560020016 Belt pulley 1
3/A VG1560020020 Belt pulley 1
4 VG1560020010 Vibration damper 1
5  AZ1500020220 Fly wheel 1
6 VG2600020208 Ring gear 1
7 190003802558 Screw 8
8 190003871305 Nut 2
9 190003813571 Stud 2
10 190003311416 Ball bearing 1
11 190003934310 Circlip 1
12 VG1500020070 Flange 1
13 VG14020038 Crank shaft gear 1
14 190003901504 Cylinderical pin 6
15 190003960569 Key 1
16 190003932024 Spring washer 12
17 190003800579 Screw 10
18 VG1500060228 V-belt-water pump 2
18/A VG2600020253 V-belt-water pump 2
19 190003901418 Cylinderical pin 1
