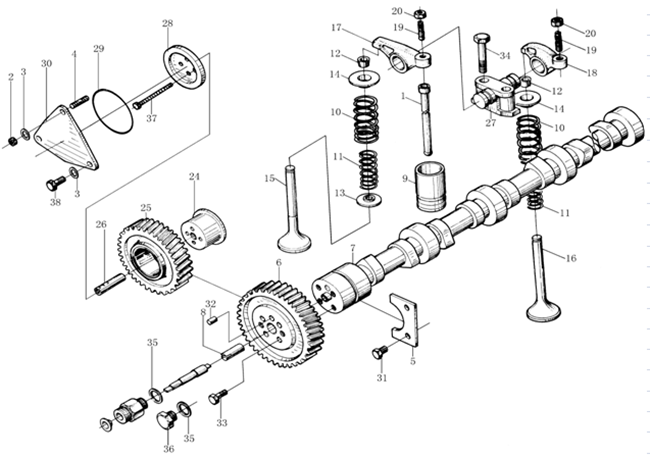

| NO. | Part No. | Part Name | Quantity |
| 1 | VG1500050070 | Push rod | 12 |
| 2 | 190003871252 | Nut | 2 |
| 3 | 190003932023 | Spring washer | 3 |
| 4 | 190003813414 | Stud | 2 |
| 5 | VG14050133 | Flange | 1 |
| 6 | VG14050053 | Camshaft gear | 1 |
| 7 | VG1500050096 | Camshaft | 1 |
| 8 | 190003901409 | Pin | 1 |
| 9 | VG1500050032 | Push rod | 12 |
| 10 | VG1500050002 | Outer valve spring | 12 |
| 11 | VG1500050001 | Inner valve spring | 12 |
| 12 | VG1500050025 | Valve cone | 24 |
| 13 | VG14050017 | Below spring base for intake valve | 6 |
| 14 | VG1500050109 | Upper spring base | 12 |
| 15 | VG1560051001 | Intake valve | 6 |
| 16 | VG1560050041 | Exhaust valve | 6 |
| 17 | VG14050048 | Rocker arm for intake valve | 6 |
| 18 | VG14050049 | Rocker arm for exhaust valve | 6 |
| 19 | VG14050010 | Screw | 12 |
| 20 | VG2130050065 | Nut | 12 |
| 24 | VG1560050044 | Idle gear shaft | 1 |
| 24/A | VG1540059031 | Idle gear shaft | 1 |
| 25 | VG1560050053 | Idle gear | 1 |
| 26 | VG1560050058 | Shaft | 1 |
| 27 | VG14050119 | Rockor arm support | 6 |
| 28 | VG1560050045 | Cover | 1 |
| 29 | 190003120602 | Seal ring | 1 |
| 30 | VG1560050046A | Cover | 1 |
| 31 | 190003802399 | Screw | 2 |
| 32 | 190003901409 | Dowel | 1 |
| 33 | 190003802443 | Screw | 4 |
| 34 | 190003802655 | Screw | 12 |
| 37 | VG1560050059 | Screw | 4 |
| 38 | 190003862419 | Bolt | 1 |
