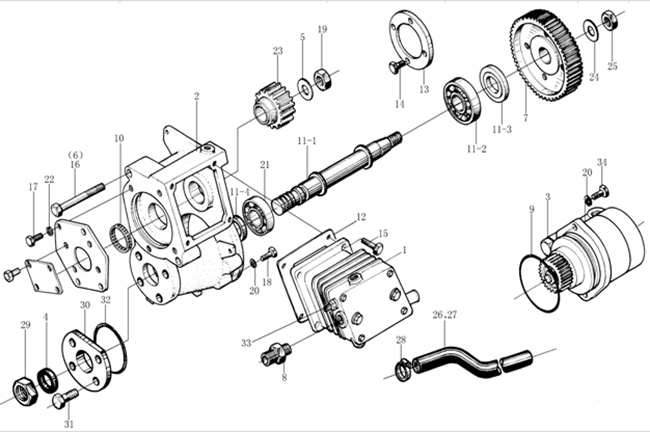

| NO. | Part No. | Part Name | Quantity |
| 1 | VG1560130070 | Air compressor | 1 |
| 4 | VG0003070092 | Oil seal | 1 |
| 5 | VG609070161 | Flat washer | 1 |
| 7 | VG1560130064 | Gear | 1 |
| 8 | VG9100360025 | Connector | 1 |
| 11 | AZ2600130124 | Shaft C | 1 |
| 11/1 | VG2600130122 | Shaft | 1 |
| 11/2 | 190003320154 | Rollor bearing | 1 |
| 11/3 | 161500080158J | Bearing | 2 |
| 11/4 | VG2600130047 | Bush | 1 |
| 12 | 61500130080 | Gasket | 1 |
| 13 | VG1500080165 | Cover | 1 |
| 14 | 190003802432 | Hex head bolt | 4 |
| 15 | 90003802438 | Hex head bolt | 6 |
| 16 | 190003800569 | Hex head bolt | 2 |
| 17 | 90003802411 | Hex head bolt | 4 |
| 18 | 190003802419 | Hexagon bolt | 7 |
| 19 | VG2600130001 | Hex head nut | 1 |
| 20 | 190003932023 | Wave spring washer | 11 |
| 22 | 190003930261 | Washer | 4 |
| 23 | VG1560130012 | Gear | 1 |
| 24 | VG409020045 | Washer | 1 |
| 25 | VG2600130045 | Nut | 1 |
| 29 | VG2600130046 | Lock nut | 1 |
| 30 | VG1500130097 | Oil seal seat | 1 |
| 31 | 190003802415 | Screw | 4 |
| 32 | VG192320002 | Sealing ring | 1 |
