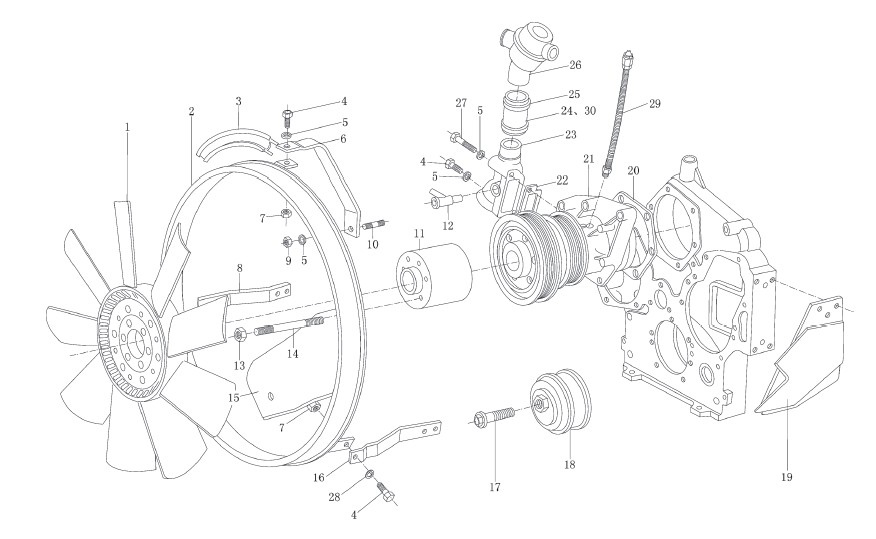

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600060398 | 硅油离合器风扇 | Visw hub |
| 2 | 61560060004 | 护风罩总成 | Ring |
| 3 | AZ1560060016 | 护风带总成 | Siphon |
| 4 | 90003802424 | 六角头螺栓 | Bolt |
| 5 | 90003932023 | 波形弹性垫圈 | Spring Washer |
| 6 | 61560060012 | 支架 | Bracket |
| 7 | 90003888451 | 2 型全金属六角锁紧螺母 | Nut |
| 8 | 61560060010 | 支架 | Bracket |
| 9 | 90003871252 | 1 型六角螺母 | Nut |
| 10 | 90003811420 | 双头螺柱 | Stud |
| 11 | 61500060239 | 中间法兰 | Flange |
| 12 | AZ1560060001 | 管接头组件 | Pipe connector |
| 13 | 90003888452 | 2 型全金属六角锁紧螺母 | Nut |
| 14 | 90003810020 | 双头螺柱 | Stud |
| 15 | 99100590006 | 左支架 | Left bracket |
| 16 | 61560060011 | 支架 | Bracket |
| 17 | 90011400001 | 六角法兰面螺栓 | Bolt |
| 18 | 612600060391 | 张紧轮总成 | Rolt C |
| 19 | 99100590009 | 右支架 | Right bracket |
| 20 | 614060008 | 水泵密封垫 | Seal pad |
| 21 | 612600060389 | 水泵总成 | Water pump ass’y |
| 22 | 614060024 | 水管接头垫片 | Joint |
| 23 | 61560060022A | 水管接头 | Connector |
| 24 | 612600060518 | 冷却水软管 | Tube |
| 25 | 900003989306 | 软管卡箍 | Clamp |
| 26 | 614060135 | 节温器总成 | Thermostate ass’y |
| 27 | 90003800467 | 六角头螺栓 | Bolt |
| 28 | 90003937283 | 垫圈 | Washer |
| 90003930261 | 平垫圈 | Washer | |
| 29 | 612600060456 | 水泵加黄油装置 | Adding butter thingamy |
| 30 | 61000060276 | 橡胶管（带纤维夹层） | Rubber pipe |
