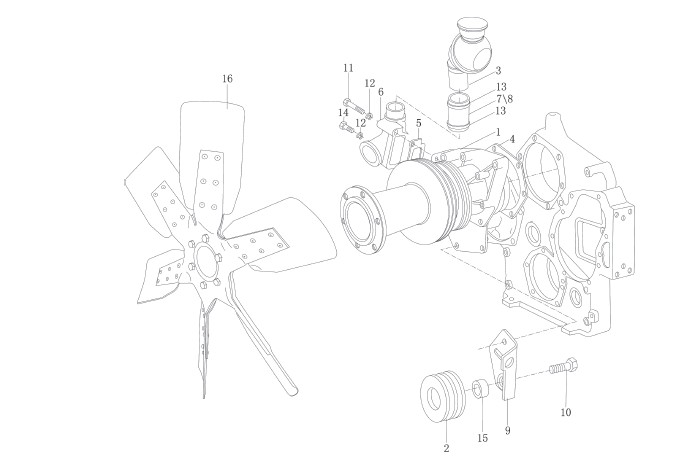

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612600060143 | 水泵总成 | Water pump |
| 612600060712 | 水泵总成 | Water pump | |
| 612600060680 | 中间法兰 | Flange | |
| 2 | 61400060161 | 张紧轮总成 | Tension pulley |
| 61560060069 | 张紧轮总成 | Tension pulley | |
| 3 | 615G00060016 | 节温器总成 | Thermostat |
| 4 | 614060008 | 水泵密封垫 | Gasket |
| 5 | 614060024 | 水管接头垫片 | Washer |
| 6 | 614060095 | 水管接头 | Pipe connector |
| 7 | 612600060518 | 冷却水软管 | Rubber pipe |
| 8 | 61000060276 | 胶管 | Rubber pipe |
| 9 | 61560060021 | 涨紧轮支撑板 | Tension plate |
| 10 | 61500060169 | 小六角头螺栓 | Screw |
| 11 | 90003800467 | 六角头螺栓 | Hexagon bolt |
| 12 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 13 | 90003989306 | 软管卡箍 | Hose clip |
| 90003989308 | 六角头螺栓 | Hexagon bolt | |
| 14 | 90003802424 | 隔套 | Spacing sleeve |
| 15 | 614060160 | 风扇组件 | Fan |
| 16 | 612600060154 | 塑料风扇（φ760吹风） | Fan |
| 612600060121 |
