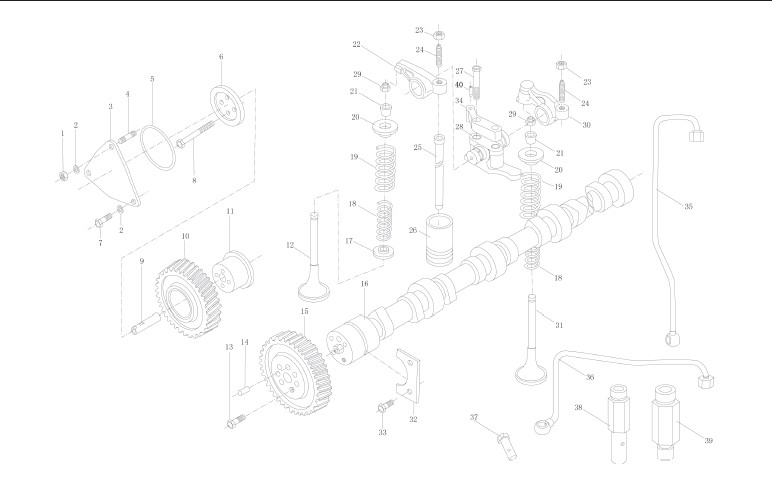

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 90003871252 | 1 型六角螺母 | Nut |
| 2 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 3 | 61560050046A | 盖板 | Cover plate |
| 4 | 90003813414 | 双头螺柱 | Stud |
| 5 | 90003120602 | 密封圈 | Seal ring |
| 6 | 61560050045 | 垫片 | Snap plale |
| 7 | 90003862419 | 圆柱头内六角螺栓 | Bolt |
| 8 | 61560050059 | 六角头螺栓 | Bolt |
| 9 | 6156000058 | 轴 | Shaft |
| 10 | 61560050053 | 中间齿轮总成 | Intermed gear |
| 11 | 61560050044 | 中间齿轮轴 | Intermed wheel |
| 12 | 612600050073 | 进气门 | Intake valve |
| 13 | 90003802443 | 六角头螺栓 | Bolt |
| 14 | 90003901409 | 圆柱销 | Pin |
| 15 | 614050053 | 凸轮轴正时齿轮 | Camshaft gear |
| 16 | 61500050096 | 凸轮轴 | Camshaft |
| 17 | 614050017 | 进气门弹簧下座 | Spring base |
| 18 | 61500050001 | 气门内弹簧 | Inner valve spring |
| 19 | 61500050002 | 气门外弹簧 | Outer Valve spring |
| 20 | 61500050109 | 气门弹簧上座 | Spring plate |
| 21 | 61500050025 | 气门锁夹 | Valve cone |
| 22 | 614050048 | 进气门摇臂 | Rocker arm |
| 23 | 2130050065 | 气门间隙调整螺母 | Nut |
| 24 | 614050010 612600050043 |
气门间隙调整螺钉 | Screw |
| 25 | 81500050070 | 气门推杆总成 | Push rod |
| 26 | 61500050032 | 气门挺柱 | Push rod |
| 27 | 90011350067 | 六角头螺栓 | Bolt |
| 28 | 612600050027 | 气门摇臂座总成 | Rockorarm support assembly |
| 29 | 61500050105 | 气门帽 | Air valve cap |
| 30 | 612600050026 | 排气门摇臂 | Rocker arm assembly |
| 31 | 61560050041 | 排气门 | Exhaust valve |
| 32 | 614050133 | 凸轮轴止推片 | Stop shim |
| 33 | 90003802399 | 六角头螺栓 | Bolt |
| 34 | 612600050028 | 支撑臂 | Lever |
| 35 | 612600050095 | EVB进油管总成 | Oil pipe |
| 36 | 612600050088 | 进油短管总成 | Oil pipe |
| 37 | 612600050039 | 空心螺栓 | Bolt |
| 38 | 612600050040 | 空心螺栓接头 | Bolt |
| 39 | 612600050041 | 螺纹接头 | Bolt |
| 40 | 612600050038 | 调节螺栓总成 | Screw |
