WP12

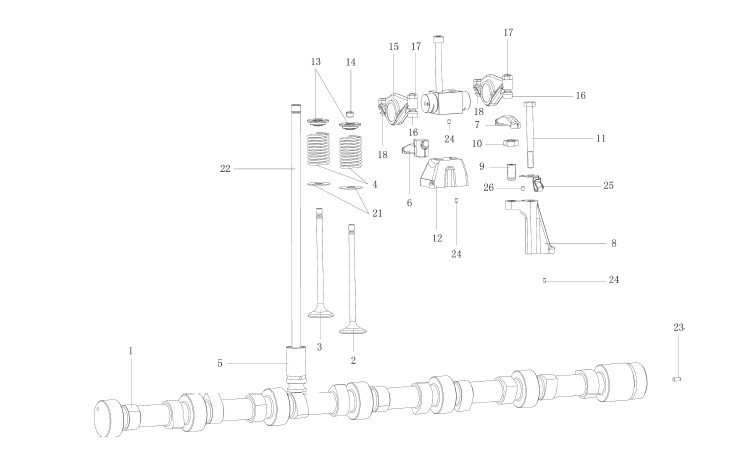

VALVE DISTRIBUTING MECHANISM

2015-11-26 21:39:21



 NO. Part No. Chinese Name Part Name
1 61263005005l 凸轮轴 Camshaft
2 61263005000l 进气门 Intake valve
3 612630050002 排气门 Exhaust valve
4 612630050005 气门弹簧 Valve spring
5 612630050007 挺柱 Tappet
6 612630050008 EVB气门桥 EVB valve bridge
7 612630050009 气门桥 Valve bridge
8 612630050010 EVB支架 EVB bracket
9 612630050011 EVB调整螺钉 EVB screw adjustment
10 612630050012 EVB锁紧螺母 Nut lock adjustment
11 612639000066 螺栓 Screw
12 612630050013 摇臂支架 Bracket rocker support
13 612630050014 气门弹簧上座 Spring plate
14 612630050015 气门锁夹 Valve cone
15 612630050026 摇臂 Rocket arm
16 612630050027 调整螺钉/垫块 Rocket arm adjustment
17 612630050028 锁紧螺母 Nut lock
18 612630050029 球销 Ball pin
19 612630050018 摇臂轴 Rocker arm shaft
20 612639000095 六角头螺栓 Screw
21 612630050019 气门弹簧下座 Spring plate
22 612630050021 气门推杆 Push rod
23 612639000061 圆柱销 Pin
24 90015200021 圆柱销 Pin
25 612630040052 喷油器线束支架 Clamp injector cable
26 612639000087 圆柱销 Pin
