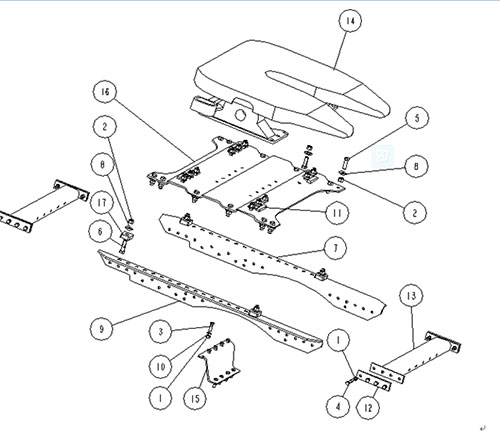

| NO | PART NO | QUANGIGY | Designation | 名称 |
| 1 | Q33212T13F2 | 25 | Nut | 2型六角全金属锁紧螺母 |
| 2 | Q33216T13F2 | 28 | Nut | 2型六角全金属锁紧螺母 |
| 3 | Q150B1240TF2 | 9 | Screw | 六角头螺栓 |
| 4 | Q150B1265TF2 | 16 | Screw | 六角头螺栓 |
| 5 | Q150B1650TF2 | 24 | Screw | 六角头螺栓 |
| 6 | Q150B1660TF2 | 4 | Screw | 六角头螺栓 |
| 7 | AZ9925513307 | 1 | Plate Right | 右角支撑板 |
| 8 | 190003937830 | 28 | Washer | 垫圈 |
| 9 | AZ9925513308 | 1 | Plate Left | 左角支撑板 |
| 10 | Q40112 | 9 | Washer | 平垫圈 |
| 11 | 1780S930009 | 4 | Cushion of bracket | 支架板垫块 |
| 12 | AZ9925510032 | 4 | Cushion of cross | 横梁垫块 |
| 13 | AZ9925510030 | 2 | Cross member | 横梁总成 |
| 14 | WG9112930001 | 1 | The Assembly of | 牵引座总成（高：150mm） |
| bicycle saddle | ||||
| 15 | AZ9925930041 | 1 | Connecting ban | 连接板 |
| 16 | AZ9725930080 | 1 | The installation ban of Bicycle saddle | 鞍座安装板 |
| 17 | AZ9719930102 | 4 | The linit ban of Bicycle | 鞍座止推板 |
