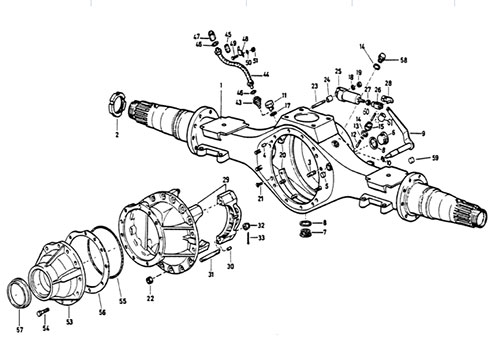

| NO. | Part No. | Part Name | Quantity |
| 0 | AH71131550520 | Rear axle | 1 |
| 1 | AZ9231330265 | Rear axle housing | 1 |
| 2 | WG680340013 | Nut | 2 |
| 3 | 190003810631 | Stud | 4 |
| 5 | 190003989290 | Croe plug | 1 |
| 6 | WG81500010163 | Screw | 1 |
| 7 | 1586 330015 | Magnet plug | 1 |
| 8 | Q72336 | Gasket | 2 |
| 9 | WG9014330125 | Lever | 1 |
| 10 | 1680M 320015 | O-ring | 1 |
| 11 | 199000330006 | Breather | 1 |
| 12 | WG69000330008 | Pin | 1 |
| 12A | WG69000330009 | Pin | 1 |
| 12B | WG9100330010 | Pin | 1 |
| 13 | Q43705 | Snap ring | 1 |
| 14 | Q72318 T5F | Gasket | 1 |
| 15 | WG9100710003 | Pressure switch | 1 |
| 18 | Q40108 | Washer | 1 |
| 19 | Q33208 | Nut | 1 |
| 20 | WG9014330146 | Connecting clip below | 1 |
| 20A | WG9014330147 | Connecting clip above | 1 |
| 21 | Q2540820 | Screw | 4 |
| 22 | 190003888732 | Nut | 16 |
| 23 | Q1200850F3 | Stud | 1 |
| 24 | WG61000060084 | Sleeve | 1 |
| 25 | WG79100360018 | Operating cylinder | 1 |
| 25/A | WG9000360514 | Operating cylinder | 1 |
| 26 | 190003964418 | Clevis | 1 |
| 27 | 190003870221 | Nut | 1 |
| 28 | WG780 350055 | Pin | 1 |
| 29 | 199012320098 | Houseing of rear axle driver | 1 |
| 30 | Q5210820 | Pin | 4 |
| 31 | Q12316120 | Stud | 4 |
| 32 | 190003888459 | Nut | 4 |
| 53 | WG9012320131 | Bearing housing | 1 |
| 54 | Q150B1230TF2 | Screw | 12 |
| 55 | WG9012320133 | Gasket | 1 |
| 56 | WG9012320173 | Shim | nb |
| 56 | WG9012320174 | Shim | nb |
| 56 | WG9012320175 | Shim | nb |
| 56 | WG9012320176 | Shim | nb |
| 57 | WG9012320121 | Ring | 1 |
| 58 | 190003962030 | Plug | 1 |
| 59 | 190003989290 | Core plug | 1 |
