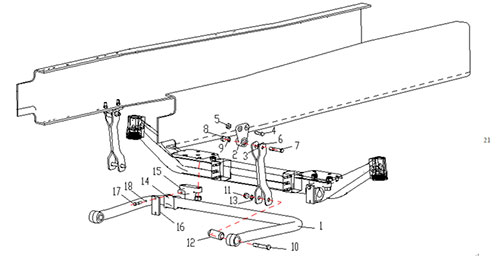

| NO | PART NAME | QUANTITY | Designation | 名 称 |
| 1 | AZ9925680003 | 1 | Stabilizer | 前稳定杆 |
| 2 | WG9100680047 | 2 | Bracket | 支架 |
| 3 | 190003936012 | 2 | Washer | 垫圈 |
| 4 | Q151C1250 | 4 | Screw | 六角头螺栓 |
| 5 | 190003888457 | 4 | Lock nut | 自锁螺母 |
| 6 | AZ9160680055 | 2 | Plate | 吊板 |
| 7 | 199100680057 | 2 | Screw | 螺栓 |
| 8 | 190003888459 | 2 | Lock nut | 自锁螺母 |
| 9 | Q40016 | 2 | Washer | 小垫圈 |
| 10 | 199100680069 | 2 | Screw | 螺栓 |
| 11 | 190003888458 | 2 | Lock nut | 自锁螺母 |
| 12 | 199100680052 | 2 | bush | 轴套合件 |
| 13 | Q40214 | 2 | Washer | 大垫圈 |
| 14 | 199100680068 | 4 | Rubber bearing | 橡胶轴承 |
| 15 | WG9925680011 | 4 | Connect plate | 固定夹块 |
| 16 | WG9925680012 | 2 | Plate | 垫板 |
| 17 | Q150B1030 | 2 | Screw | 六角头螺栓 |
| 18 | Q40310 | 4 | Spring washer | 弹簧垫圈 |
