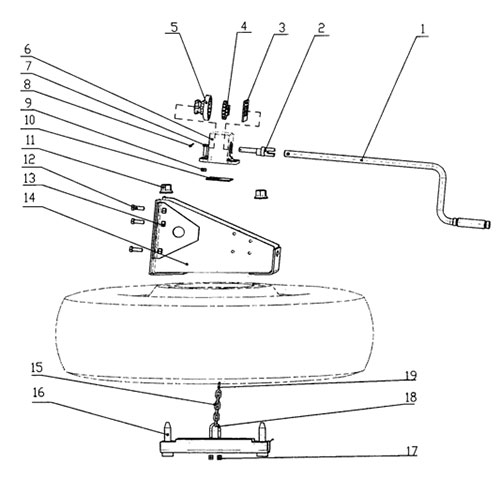

| NO. | Part No. | Part Name | Quantity |
| 0 | WG9719860027 | Drive device（include 2~19） | 1 |
| 0 | AZ9719860018 | Drive device（include 2~10,15~19） | 1 |
| 1 | AZ9719860014 | Cranker | 1 |
| 2 | AZ9719860012 | Shaft | 1 |
| 3 | 17017860022 | Locking sheet | 1 |
| 4 | 17017860023 | Drive wheel | 1 |
| 5 | 17017860024 | Driven wheel | 1 |
| 6 | AZ9719860007 | Housing | 1 |
| 7 | Q150B1035 | Screw | 4 |
| 8 | Q5004030 | Split pin | 1 |
| 9 | Q33210 | Nut | 4 |
| 10 | 17017860027 | Coveer | 1 |
| 11 | WG9003884160 | Wheel nut | 2 |
| 12 | Q150B1235 | Screw | 6 |
| 13 | Q33212 | Nut | 6 |
| 14 | AZ9719860021 | Bracket | 1 |
| 15 | 17017860031 | Cable | 1 |
| 16 | AZ9112860046 | Screw | 2 |
| 17 | Q340B08 | Nut | 4 |
| 18 | AZ9112860097 | Hook | 1 |
| 19 | Q5004030 | Split pin | 1 |
