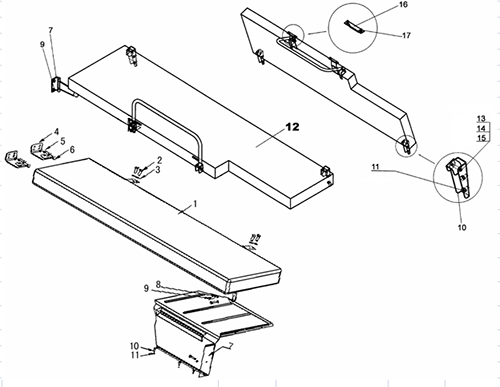

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ1643570001 | Sleeper | 1 |
| 2 | Q150B0825 | Screw | 4 |
| 3 | Q40008 | Washer | 4 |
| 4 | WG1643570008 | Support right | 2 |
| 5 | Q150B0825 | Screw | 4 |
| 5/A | Q150B0625 | Screw | 4 |
| 6 | Q40008 | Washer | 4 |
| 6/A | Q40006 | Washer | 4 |
| 7 | WG1643570010 | Support | 1 |
| 8 | Q150B0625 | Screw | 3 |
| 9 | Q40006 | Washer | 3 |
| 10 | Q150B0420 | Screw | 3 |
| 10/A | Q2714225 | Screw | 3 |
| 11 | Q40004 | Washer | 3 |
| 12 | WG1644570001 | Upper sleeper | 1 |
| 13 | AZ1644570192 | Fixed plate | 2 |
| 13a | Q150B0820 | Screw | 8 |
| 13b | Q40108 | Washer | 8 |
| 13c | Q40308 | Spring washer | 8 |
| 14 | AZ1672570020 | Rear hinge | 2 |
| 15 | Q150B0825 | Screw | 4 |
| 16 | Q40008 | Washer | 4 |
| 17 | Q5100850 | Bolt | 2 |
| 18 | Q5003220 | Split pin | 2 |
