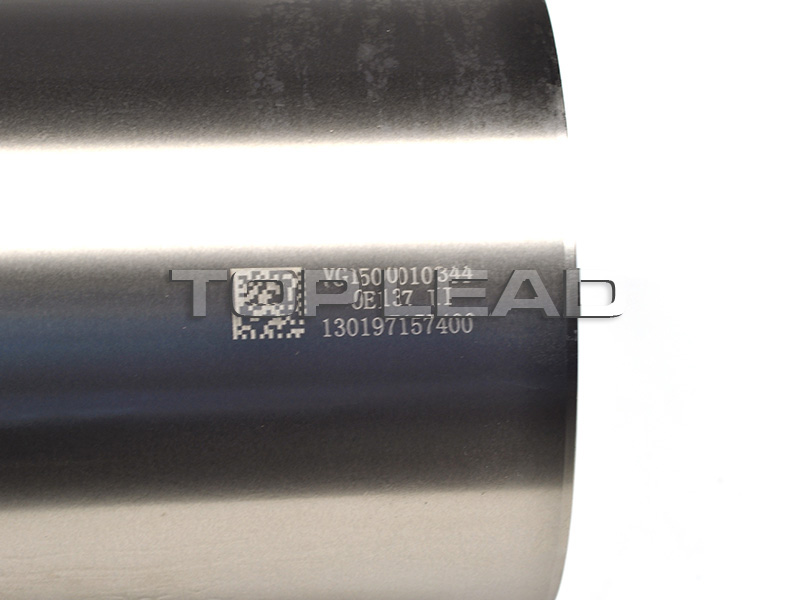

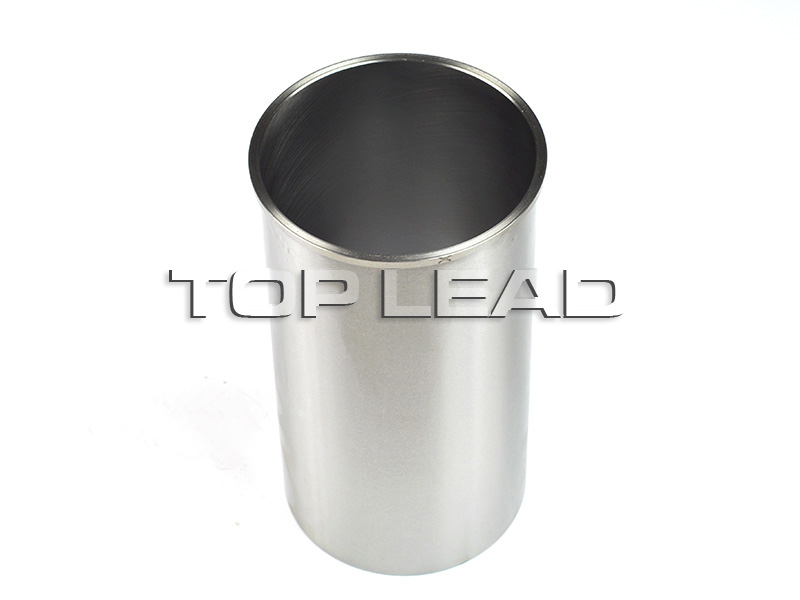

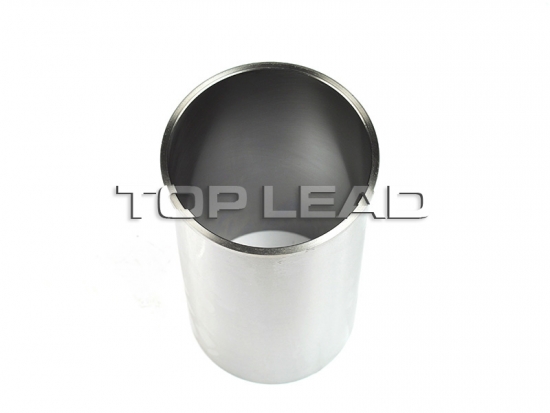

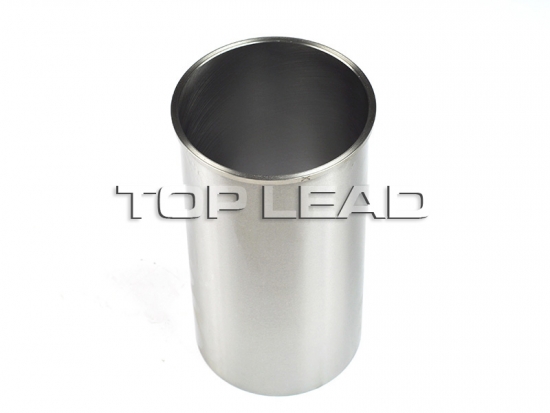

SINOTRUK WD615 WD618 Cylinder Liner For HOWO, HOWO-T7H, HOWO-A7, SINOTRUK WD615 Series Part No.:VG1500010344

Quick Details:

Packaging & Delivery:

Standard Accessories:

61500010014 is 67 class; WD615 280 horsepower engine;

Matching piston 61560030016; matching piston pin 61560030013; matching piston ring 61560030008/39/47;

61560010319 is 68 class, WD615 310 horsepower engine matching piston 61560030009, matching piston pin 61560030013, matching piston ring 615000300390014 and 0319 cylinder the same, but the material is different; 319

Cylinder can replace the 014 cylinder, but can not replace 319,319 cylinder liner 014 is now less used, has been 034 Europe2 cylinder liners instead.

61500010344 (Weichai number) VG1500010344 (SINOTRUK number), both are European Ⅱ engine matching piston VG1560037011, 612600030011, 612600030015; matching piston pin 61560030013;

Matching Piston Ring 612600030053 (trapezoidal ring 612600030035 according to the curved conical surface ring 612600030036 spiral spring oil ring

612600030037)

WD618 Engine Matching Piston 612600030017

; Matching piston pin 61560030013 matching piston ring 612600030051 WD618 engine is a transition model, the engine cylinder sleeve in order to meet the demand for high horsepower from WD615 engine cylinder liner on the basis of heightened, so WD618 cylinder is unique: 612600900131 ; Connecting rod is also lengthened: 61800030041
