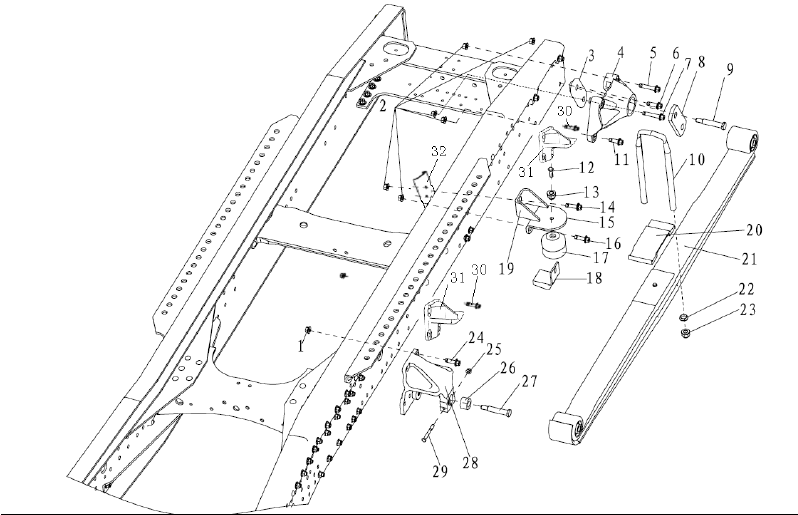

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
06.11251.2005 |
六角自锁螺母M24*2 |
Self-locking Nut |
|
2 |
06.11251.2005 |
六角自锁螺母M24*2 |
Self-locking Nut |
|
3 |
81.41303.0079 |
板簧连接板(带螺纹) |
Leaf-spring Connecting Panel ( with thread) |
|
4 |
81.41307.0052 |
后板簧后支架总成 |
Rear Bracket Assembly |
|
5 |
Q1811470T |
六角法兰面承面带齿螺栓 |
Hex bolt with flange & teeth |
|
6 |
Q1811445T |
六角法兰面承面带齿螺栓 |
Hex bolt with flange & teeth |
|
7 |
Q1811475T |
六角法兰面承面带齿螺栓 |
Hex bolt with flange & teeth |
|
8 |
81.41303.0080 |
板簧连接板(不带螺纹) |
Leaf-spring Connecting Panel ( without thread) |
|
9 |
06.02839.0013 |
六角头螺栓M24*2*145 |
Hex Bolt M24*2*145 |
|
10 |
81.41312.0103 |
骑马骡栓 |
Saddle Clamp Bolt |
|
|
DZ9112526056 |
骑马骡栓 |
Saddle Clamp Bolt |
|
11 |
Q1811440T |
六角法兰面承面带齿螺栓 |
Hex bolt with flange & teeth |
|
12 |
Q151C1235Q |
六角头螺栓 |
Hex bolt |
|
13 |
06.11240.0411 |
六角锁紧螺母 |
Hex Self-locking Nut |
|
14 |
Q1811450T |
六角法兰面承面带齿螺栓 |
Hex bolt with flange & teeth |
|
15 |
81.41410.2029 |
支架 |
Bracket |
|
16 |
Q1811445T |
六角法兰面承面带齿螺栓 |
Hex bolt with flange & teeth |
|
17 |
81.96020.6013 |
空心橡胶缓冲块 |
Cushion Rubber |
|
18 |
81.96210.0361 |
止动缓冲垫 |
Stopp Washer |
|
19 |
81.41410.2028 |
支架 |
Bracket |
|
20 |
81.41335.0064 |
后板簧夹紧板 |
Rear Spring
Clamp Plate |
|
21 |
81.43402.6504 |
抛物线板簧总成 |
Parabolic
Leaf-spring Assembly |
|
|
DZ9112526096
|
抛物线板簧总成 |
Parabolic
Leaf-spring Assembly |
|
22 |
81.90712.0036 |
球型垫圈 |
Ball-type
washer/filler ring |
|
23 |
06.11289.0005 |
六角自锁螺母M24*2 |
Hex Self-locking
Nut M24×2 |
|
24 |
Q1811445T |
六角法兰面承面带齿螺栓 |
Hexagon bolt
with flange |
|
25 |
Q33010T13F2 |
六角锁紧螺母 |
Hex Self-locking
Nut |
|
26 |
81.41304.0054 |
轴套 |
Bush |
|
27 |
06.02839.0015 |
六角头螺栓M24*2*170 |
Hex Bolt
M24*2*170 |
|
28 |
81.41307.0043 |
后板簧前支架 |
Front
Braket |
|
29 |
Q150B1090TF2
|
六角头螺栓 |
Hex Bolt |
|
30 |
Q1811445T |
六角法兰面承面带齿螺栓 |
Hexagon bolt
with flange |
|
|
Q1811455T |
六角法兰面承面带齿螺栓 |
Hexagon bolt
with flange |
|
31 |
DZ95189525094 |
副簧限位支架 |
Sub-leaf spring
limit bracket |
|
32 |
81.41410.0006 |
垫板 |
Pad |
