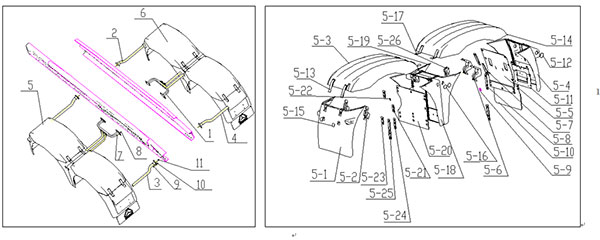

| NO. | Part No. | Quantity | Part Name | Chinese name |
| 1 | AZ9925950014 | 2 | Mid beam | 后挡泥板中间支架总成 |
| 2 | AZ9925950025 | 2 | Front beam | 后挡泥板前支架总成 |
| 3 | AZ9925950026 | 1 | Rear left beam | 左后支架总成 |
| 4 | AZ9925950027 | 1 | Rear right beam | 右后支架总成 |
| 5 | WG9925950120 | 1 | Left Mudguard for double axle | 双后桥挡泥板左总成 |
| 6 | WG9925950121 | 1 | Right Mudguard for double axle | 双后桥挡泥板右总成 |
| 7 | Q150B1240 | 12 | bolt | 六角头螺栓 |
| 8 | Q33212 | 12 | nut | 2型全金属六角锁紧螺母 |
| 9 | Q150B1445 | 8 | bolt | 六角头螺栓 |
| 10 | Q33214 | 8 | nut | 2型全金属六角锁紧螺母 |
| 11 | Q33216 | 4 | nut | 自锁螺母 |
| 5/1 | WG9925950130/1 | 1 | Front Left Mudguard | 前轮罩(左) |
| 5/2 | WG9925950132/1 | 2 | Fron t Clamping Device | 前夹箍总成 |
| 5/3 | WG9925950137/1 | 2 | Top Cap for Mudguard | 轮罩上盖 |
| 5/4 | WG9925950138/1 | 1 | Rear Mudguard | 后轮罩 |
| 5/5 | WG9925950139/1 | 1 | Rear Cover Board | 后毛板 |
| 5/6 | WG9925950140/1 | 2 | Rear Clamping Device | 后夹箍总成 |
| 5/7 | WG9925950143/1 | 2 | Rear Pressure Plate I | 后泥板压板1 |
| 5/8 | WG9925950144/1 | 2 | Rear Pressure Plate II | 后泥板压板2 |
| 5/9 | WG9925950145/1 | 1 | Rear Pressure Plate III | 后泥板压板3 |
| 5/10 | WG9925950146/1 | 1 | Sign Board | 标志板 |
| 5/11 | WG9925950147/1 | 1 | Taillight Bracket | 尾灯支架 |
| 5/12 | WG9925950148/1 | 1 | Cover II | 堵盖2 |
| 5/13 | WG9925950149/1 | 2 | Rubber Drawstring I | 橡胶拉带1 |
| 5/14 | WG9925950150/1 | 2 | Rubber Drawstring III | 橡胶拉带3 |
| 5/15 | WG9925950151/1 | 2 | Cover for Front Mudguard | 前罩堵盖 |
| 5/16 | WG9925950152/1 | 2 | Cover I | 堵盖1 |
| 5/17 | WG9925950153/1 | 4 | Rubber Drawstring II | 橡胶拉带2 |
| 5/18 | WG9925950154/1 | 1 | Mid Mudguard I | 中轮罩1 |
| 5/19 | WG9925950155/1 | 1 | Mid Mudguard II | 中轮罩2 |
| 5/20 | WG9925950156/1 | 2 | Mid flat Board | 中泥板平板 |
| 5/21 | WG9925950158/1 | 4 | Mid Pressure Plate I | 中泥板压板1 |
| 5/22 | WG9925950159/1 | 2 | Mid Pressure Plate II | 中泥板压板2 |
| 5/23 | WG9925950160/1 | 2 | Mid Pressure Plate III | 中泥板压板3 |
| 5/24 | WG9925950161/1 | 2 | Mid Pressure Plate IV | 中泥板压板4 |
| 5/25 | WG9925950162/1 | 2 | Mid Pressure Plate V | 中泥板压板5 |
| 5/26 | WG9925950164/1 | 4 | Mid Clamping Device | 中夹箍
