| NO | PART NO | QUANTITY | Designation | 名 称 |

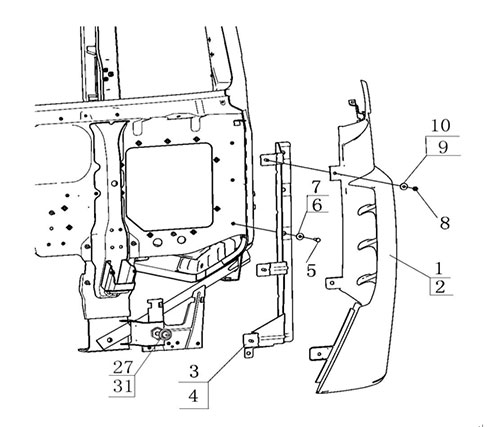

| 1 | WG1664110051 | 1 | Wind facing left for high floor | 高地板左导风罩总成 |
| 2 | WG1664110052 | 1 | Wind facing right for high floor | 高地板右导风罩总成（与左件对称） |
| 3 | AZ1664110057 | 1 | Left wind facing link plate assy | 左导风罩连接板总成 |
| 4 | AZ1664110058 | 1 | Right wind facing link plate assy | 右导风罩连接板总成（与左件对称） |
| 5 | Q150B0820 | 8 | Screw | 六角头螺栓 |
| 6 | Q40208 | 8 | Washer | 大垫圈 |
| 7 | Q40308 | 8 | Spring washer | 弹簧垫圈 |
| 8 | Q340B08 | 6 | Nut | 1型六角螺母 |
| 9 | Q40208 | 6 | Washer | 大垫圈 |
| 10 | Q40308 | 6 | Spring washer | 弹簧垫圈 |

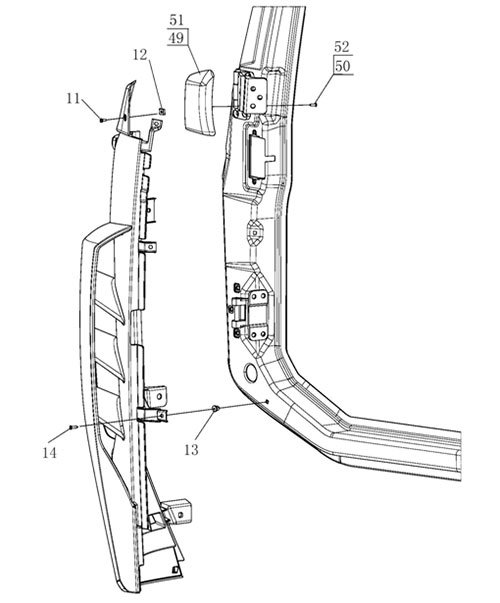

| 11 | Q2714213 | 2 | Screw | 十字槽盘头自攻螺钉 |
| 12 | Q39739162 | 2 | Nut | 簧片螺母 |
| 13 | WG1664930006 | 6 | Plastic nut-plate | 塑料螺母座 |
| 14 | Q2714216 | 6 | Screw | 十字槽盘头自攻螺钉 |

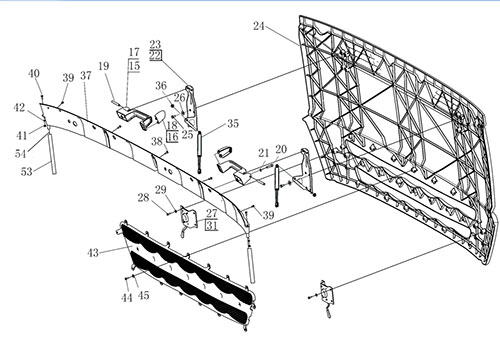

| 15 | WG1664110031 | 1 | Hinge seat left | 铰链座(左) |
| 16 | WG1664110034 | 1 | Cover | 堵盖（右）（与左件对称） |
| 17 | WG1664110032 | 1 | Hinge seat right | 铰链座(右)（与左件对称） |
| 18 | WG1664110035 | 1 | Cover | 堵盖（左） |
| 19 | AZ1664110033 | 2 | Hinge pin | 铰链销轴 |
| 20 | Q218B0830 | 4 | Screw | 内六角圆柱头螺钉 |
| 21 | Q40008 | 4 | Washer | 小垫圈 |
| 22 | AZ1664110021 | 1 | Left hinge plate | 左铰链板 |
| 23 | AZ1664110022 | 1 | Right hinge plate | 右铰链板（与左件对称） |
| 24 | WG1664110011 | 1 | Radiator grille | 散热器面罩 |
| 25 | Q150B0816 | 8 | Screw | 六角头螺栓 |
| 26 | Q40208 | 8 | Washer | 大垫圈 |
| 27 | WG1664110027 | 1 | Grille lock left | 面罩左锁总成 |
| 28 | Q150B0616 | 4 | Screw | 六角头螺栓 |
| 29 | Q40206 | 4 | Washer | 大垫圈 |
| 30 | Q40216 | 1 | Washer | 大垫圈 |
| 31 | WG1664110028 | 1 | Grille lock right | 面罩右锁总成（与左件对称） |
| 32 | Q150B0616 | 4 | Screw | 六角头螺栓 |
| 33 | Q40206 | 4 | Washer | 大垫圈 |
| 34 | Q40216 | 1 | Washer | 大垫圈 |
| 35 | WG1664110025 | 2 | Gas spring rod | 气体弹簧支撑栓 |
| 36 | Q32008 | 2 | Nut |
