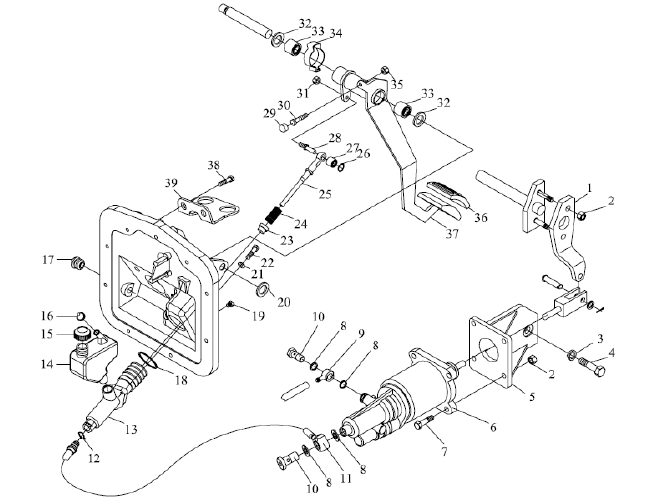

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9112230020 |
分离摇臂 |
Release arm |
|
2 |
Q33210 |
II 型全金属锁紧螺母 |
Nut |
|
3 |
Q40314 |
弹簧垫圈 |
Spring washer |
|
4 |
Q151B1435 |
六角头螺栓 |
Hex. screw |
|
5 |
DZ9112230029 |
离合器分泵支架 |
Bracket |
|
6 |
DZ9112230166 |
离合器分泵 |
Operating cylinder |
|
7 |
Q150B1045 |
六角头螺栓 |
Hex. screw |
|
8 |
Q72314 T5F |
密封垫圈 |
Gasket |
|
9 |
1.991E+11 |
软管接头 |
Hose plug |
|
10 |
SXQ84310 |
空心螺栓 |
Hollow bolt |
|
11 |
DZ9112230011 |
油管 |
Hose |
|
12 |
DZ9112230212 |
卡环 |
Spring |
|
13 |
DZ9114230022 |
离合器液压总泵 |
Clutch main cylinder |
|
14 |
DZ9114230021 |
贮液罐 |
Ciquid container |
|
15 |
81.90310.6001 |
锁盖总成 |
Lock couer assembly |
|
16 |
81.96410.0197 |
密封圈 |
Seal ring |
|
17 |
81.96002.0131 |
密封堵 |
Plug |
|
18 |
06.56930.1973 |
复曲面密封件 |
Toric seal |
|
19 |
81.96002.0384 |
螺塞 |
Plug |
|
20 |
06.29050.0116 |
垫圈 |
Lock washer |
|
21 |
06.15013.0411 |
垫圈 |
Washer |
|
22 |
06.01283.3113 |
六角头螺栓 |
Hex. screw |
|
23 |
81.97680.0072 |
弹簧座 |
Spring seat |
|
24 |
06.46080.0422 |
压缩弹簧 |
Pressure spring |
|
25 |
81.91020.0686 |
挺杆 |
Tappet |
|
26 |
06.29050.0111 |
挡圈 |
Circlip |
|
27 |
06.33719.0018 |
滚针轴承 |
Needle bearing |
|
28 |
81.91020.0611 |
螺纹销 |
Threaded pin |
|
29 |
81.96020.0369 |
橡胶垫 |
Rubber pad |
|
30 |
06.01283.3115 |
六角头螺栓 |
Hex. screw |
|
31 |
06.11240.0406 |
六角锁紧螺母 |
Hex lock nut |
|
32 |
06.15114.0418 |
调整垫圈 |
Adjusting washer |
|
33 |
06.33719.0005 |
滚针轴承 |
Needle bearing |
|
34 |
81.97640.0273 |
弹簧夹子 |
Spring clamp |
|
35 |
06.11064.2114 |
六角螺母 |
Hex. nut |
|
36 |
81.48227.0006 |
踏板防尘罩 |
Pedal covering |
|
37 |
81.48225.5119 |
离合器踏板总成 |
Clutch pedal assembly |
|
38 |
06.07069.0007 |
