2015-10-24 10:03:27
|

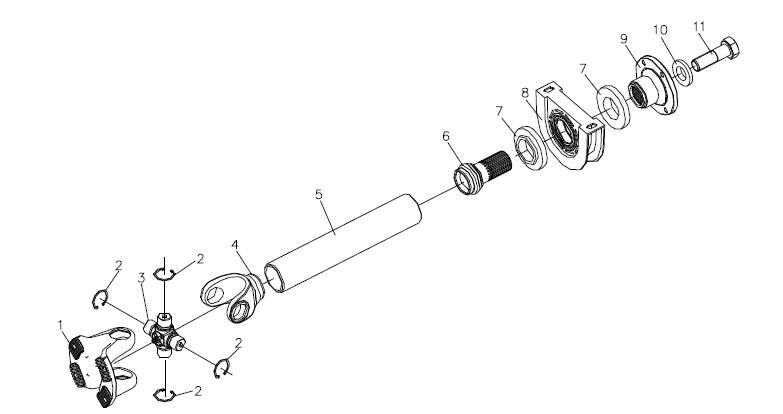

NO. |
Part No. |
Chinese Name |
Part Name |
|
1 |
DZ9112313XXX |
中间传动轴 |
Intermediate drive shaft |
|
2 |
395.411.08.11-B |
突缘叉 |
Flange fork |
|
3 |
006.994.29.41 |
卡环 |
Snap ring |
|
4 |
HWJ-3276-00 |
十字轴总成 |
Cross axis assembly |
|
5 |
395.411.09.05-A |
万向节叉 |
Universal joint fork |
|
|
|
轴管（规格：Φ110x6） |
Shaft tube (size: 110x6) |
|
6 |
P2214M-01 |
中间轴头 |
Intermediate shaft |
|
7 |
2232Aa000-04 |
挡尘圈 |
Dust ring |
|
8 |
99114310100-2204030-B |
中间支撑总成 |
Intermediate support assembly |
|
9 |
DZ9112314100-01 |
中间凸缘 |
Middle flange |
|
10 |
389.411.00.62 |
垫圈 |
Washer |
|
11 |
389.990.00.19 |
螺栓 |
Bolt |
