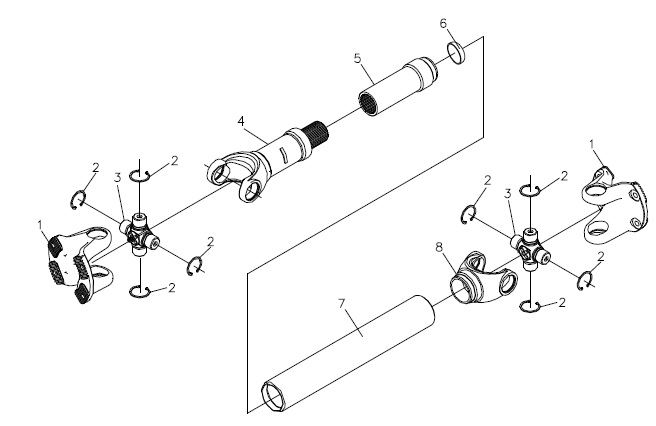

NO. |
Part No. |
Chinese Name |
Part Name |
|
|
DZ9114311XXX |
传动轴 |
Transmission shaft |
|
1 |
1491.707-2201062-J |
突缘叉 |
Flange fork |
|
2 |
1491.707-2201063 |
卡环 |
Snap ring |
|
3 |
1491.707-2201080 |
十字轴总成 |
Cross axis assembly |
|
4 |
1491.707-2201015 |
轴叉总成 |
Shaft fork assembly |
|
5 |
1491.707-2201097 |
花键套 |
Spline sleeve |
|
6 |
1491.707-2201099 |
堵盖 |
Cover |
|
7 |
|
轴管（规格：Φ92x6.5） |
Shaft tube (size: 92x6.5) |
|
8 |
1491.707-2201096 |
万向节叉 |
Universal joint fork |
|
NO. |
Part No. |
Chinese Name |
Part Name |
|
|
DZ9114312XXX |
传动轴 |
Transmission shaft |
|
1 |
1491.707-2205062-B |
突缘叉 |
Flange fork |
|
2 |
1491.707-2205063 |
卡环 |
Snap ring |
|
3 |
1491.707-2205080 |
十字轴总成 |
Cross axis assembly |
|
4 |
1491.707-2205015 |
轴叉总成 |
Shaft fork assembly |
|
5 |
1491.707-2201097-A |
花键套 |
Spline sleeve |
|
6 |
1491.707-2205099 |
堵盖 |
Cover |
|
7 |
|
轴管（规格：Φ104x8） |
Shaft tube (size: 104x8) |
|
8 |
1491.707-2201096-A |
万向节叉 |
Universal joint fork |
|

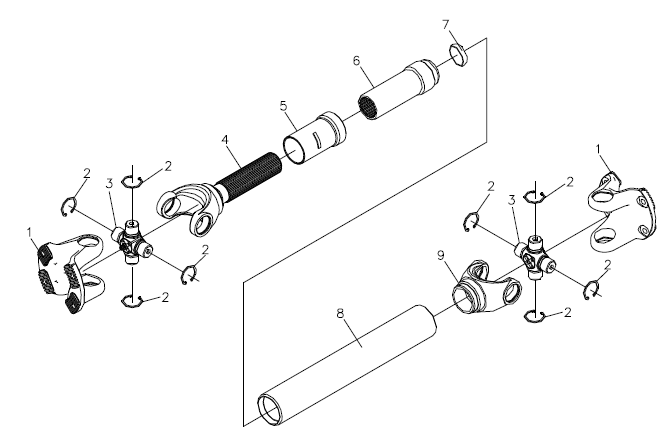

NO. |
Part No. |
Chinese Name |
Part Name |
|
|
DZ9114313XXX |
传动轴 |
Transmission shaft |
|
1 |
395.411.08.11-B |
突缘叉 |
Flange fork |
|
2 |
006.994.29.41 |
卡环 |
Snap ring |
|
3 |
HWJ-3276-00 |
十字轴总成 |
Cross axis assembly |
|
4 |
395.411.02.05 |
轴叉总成 |
Shaft fork assembly |
|
5 |
395.411.04.83 |
护套管总成 |
Casing assembly |
|
6 |
395.411.01.08-A |
花键套 |
Spline sleeve |
|
7 |
395.411.00.33 |
堵盖 |
Cover |
|
8 |
|
轴管（规格：Φ110x6） |
Shaft tube (size: 110x6) |
|
9 |
395.411.09.05 |
万向节叉 |
Universal joint fork |
