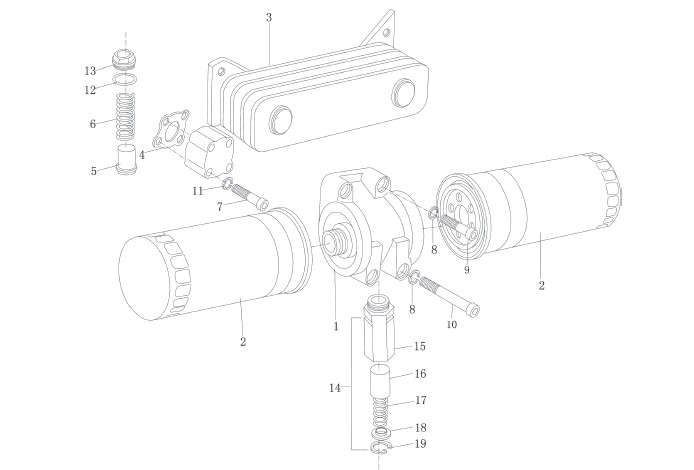

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 61500070051 | 机油滤清器座组件 | Oil fiter seat |
| 2 | 61000070005 | 旋装式机油滤芯总成 | Spiral filter element |
| 3 | 61500010334 | 机油冷却器 | Cooler element |
| 4 | 614070063 | 密封垫片 | Washer |
| 5 | 614070069 | 安全阀 | Safety valve |
| 6 | 614070068 | 安全阀弹簧 | Spring |
| 7 | 90003802455S | 六角头螺栓 | Hexagon bolt |
| 8 | 90003932023 | 波形弹性垫圈 | Spring washer |
| 9 | 90003862443 | 内六角圆柱头螺栓 | Screw |
| 10 | 90003862482 | 内六角圆柱头螺栓 | Screw |
| 11 | 90003930261 | 小垫圈 | Washer |
| 12 | 90003098086 | 密封垫圈 | Seal ring |
| 13 | 90003962051 | 轻型六角头圆柱螺塞 | Screw plug |
| 14 | AZ1500070097 | 主油道限压阀总成 | Relief valve |
| 15 | AZl500070096 | 阀体 | Valve body |
| 16 | 407070032 | 阀 | Valve |
| 17 | 407070034 | 主油道限压阀弹簧座 | Spring seat |
| 18 | 4139070059 | 主油道限压阀弹簧 | Spring |
| 19 | AZ90003930012 | 孔用弹性挡圈 | Cirelip |
