226B SERIES CONSTRUCTION MACHINERY

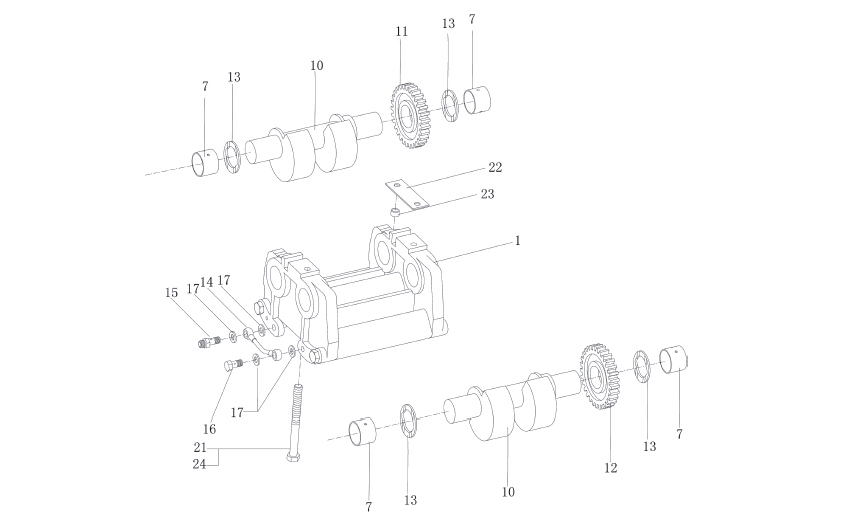

MA S S B A L A N C E R A S S EMB L Y

2015-11-18 00:34:18



 NO. Part No. Chinese Name Part Name
1 12200346 二级平衡机构壳体组件 MASS BALANCER ASSEMBLY
7 13031233 轴承衬套 LINING
10 12200348 带驱动齿轮的轴 SHAFT
12200349 带从动齿轮的轴 SHAFT
11 12200351 驱动齿轮 DRIVING GEAR
12 12200352 从动齿轮 DRIVEN GEAR
13 12200353 平衡止推片 THRUST PIECES
14 12158826 润滑油管 LUBRICAT OIL LINE
15 13031234 接头 TIE-IN
16 1153236 空心螺栓 HOLLOW SCREW
17 1118664 密封垫圈 SEALING RING
21 1151514 六角头螺栓 HEXAGON BOLT
22 12160137 调整垫片 SHIM
23 12159449 定位套 LOCALIZER
24 13021979 六角头螺栓 HEXAGON BOLT
