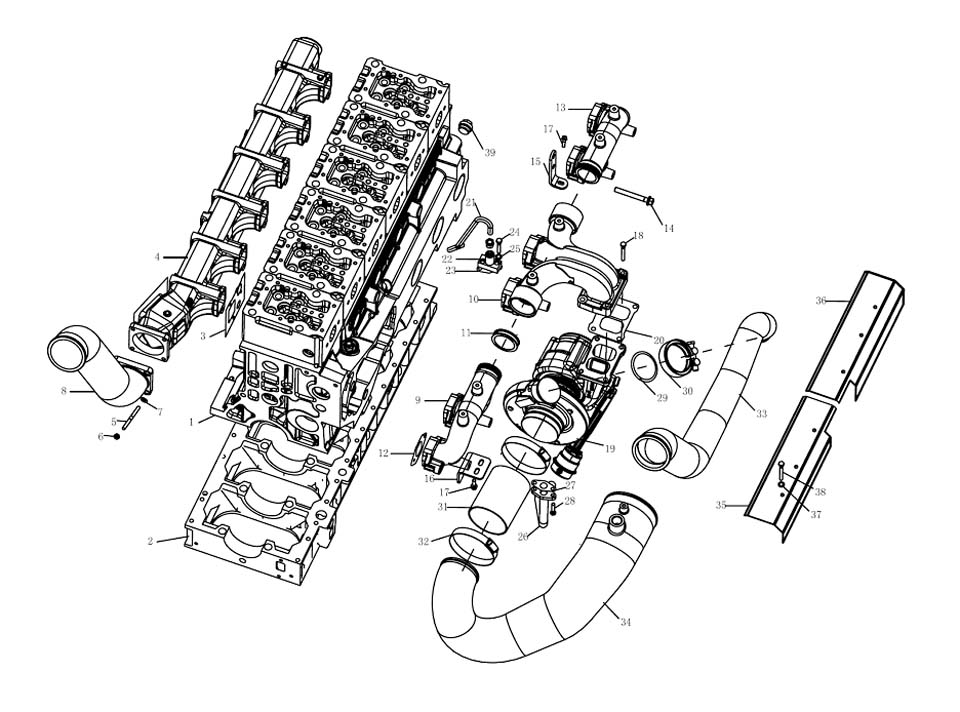

| NO. | Part no | Part Name | Chinese name |
| 1 | AZ1099010079 | Cylinder Block | 气缸体 |
| 2 | 161500010369 | Crankcase | 曲轴箱 |
| 3 | VG1500110024 | Gasket | 进气管垫片 |
| 4 | VG1540110036 | Intake manifold | 进气管 |
| 5 | Q1201030F3 | Bolt | 双头螺柱 |
| 6 | Q340B10 | Nut | 六角螺母 |
| 7 | Q41810 | Spring washer | 波形弹性垫圈 |
| 8 | VG1095110100 | Intake connecting manifold | 进气接管 |
| 9 | VG1540110145 | Exhaust manifold (front) | 第一、二缸排气歧管 |
| 10 | VG1540110146 | Exhaust manifold(middle) | 第三、四缸排气歧管 |
| 11 | VG1540110147 | Exhaust manifold(rear) | 第五、六缸排气歧管 |
| 12 | VG1540110005 | Seal ring | 排气管密封环 |
| 13 | VG1560110111 | Gasket | 排气管垫片 |
| 14 | VG1246110052 | Bolt | 排气管紧固螺栓 |
| 15 | VG1099110006 | Support | 支架 |
| 16 | VG1095110102 | Support | 支架 |
| 17 | Q150B0820 | Bolt | 六角头螺栓 |
| 18 | VG1560110241 | Bolt | 六角头螺栓 |
| 19 | VG1099110012 | Turbo charger | 废气涡轮增压器 |
| 20 | VG1540110017 | Gasket | 增压器垫片 |
| 21 | VG1099110009 | Hose | 增压器进油管 |
| 22 | VG1099110008 | Flange | 进油管法兰 |
| 23 | VG609E110050 | Gasket | 进油管垫片 |
| 24 | 90003862428 | Bolt | 内六角圆柱头螺钉 |
| 25 | VG188250083 | Retaining ring | 自锁垫圈 |
| 26 | VG1099110011 | Oil return tube assembly | 增压器回油管总成 |
| 27 | VG2600110048 | Gasket | 回油管法兰垫片 |
| 28 | VG1460070014 | Bolt | 回油管螺栓 |
| 29 | VG190320035 | O-ring | 密封圈 |
| 30 | VG1560110226 | Champ | 夹子 |
| 31 | VG1540110034 | Hose | 带纤维夹层橡胶软管 |
| 32 | 90003989318 | Hose clamp | 软管卡箍 |
| 33 | VG1099110002 | Connecting pipe | 增压器联接弯管 |
| 34 | VG1099110003 | Intake manifold | 增压器进气管 |
| 35 | VG1099110004 | Insulation cover (front) | 前隔热罩 |
| 36 | VG1099110005 | Insulation cover (rear) | 后隔热罩 |
| 37 | 190014320002 | Washer | 小垫圈 |
| 38 | VG2600110963 | Blot | 隔热罩螺栓 |
| 39 | 190003962051 | Blot | 六角头螺塞 |
