2015-11-18 23:48:11

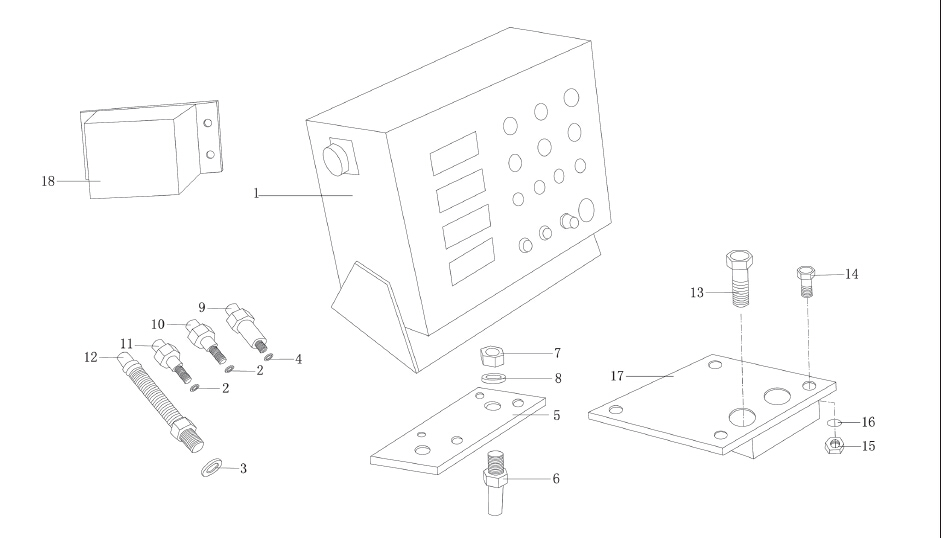

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 13024594 13030645 13030646 |
仪表盘 | INSTRUMENT BOARD |
| 2 | 1118688 | 密封垫圈 | SPRING LOCK WASHER |
| 3 | 1118713 | 密封垫圈 | SPRING LOCK WASHER |
| 4 | 1118664 | 密封垫圈 | SPRING LOCK WASHER |
| 5 | 13021594 | 仪表盘支架 | BRACKET |
| 6 | 13021521 | 接头 | JOINT |
| 7 | 1112861 | 六角螺母 | NUT |
| 8 | 1178366 | 弹簧垫圈 | SPRING LOCK WASHER |
| 9 | 13023396 | 油压传感器 | TRANSMITTER |
| 10 | 13023397 | 油温传感器 | TEMPER TRANSMITTER |
| 11 | 13023398 | 水温传感器 | TEMPER TRANSMITTER |
| 12 | 13023399 | 转速传感器 | TRANSMITTER |
| 13 | 1112416 | 六角头螺栓 | CHEESE HEAD SCREW |
| 14 | 1112238 | 六角头螺栓 | HEXAGON BOLT |
| 15 | 1152783 | 六角头螺母 | HEXAGON NUT |
| 16 | 1107279 | 波形弹性垫圈 | SPRING WASHER |
| 17 | 13024337 | 接线盒支架 | BRACKET |
| 18 | 13024592 | 接线盒 | TERMINAL BOX |
