D12 EURO 2

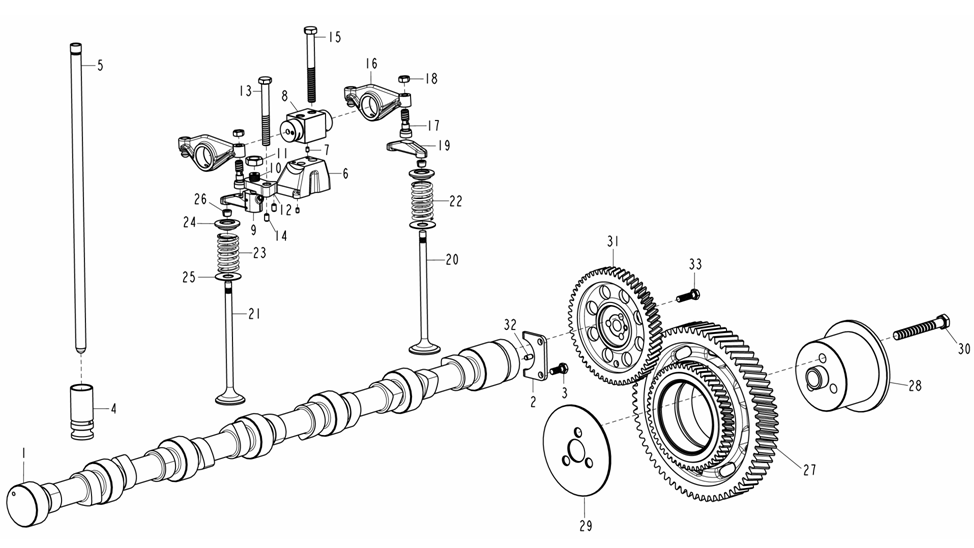

HOWO VALVE GEAR MECHANISM

2016-09-27 12:10:39

NO.	Part NO	Part Name	Chinese Name
1	VG1246050038	凸轮轴	Camshaft
2	VG1246050039	凸轮轴止推片	Thrust flange
3	Q150B0820TF2	六角头螺栓	Hex head bolt
4	VG1246050029	气门挺柱	Valve tappet
5	VG1246050020	气门推杆	Valve push rod
6	VG1246050005	摇臂座	Rocker arm support
7	Q5210406	圆柱销	Dowel pin
8	VG1246050006	摇臂轴总成	Rocker arm shaft assembly
9	VG1246050050	EVB排气门桥组件	EVB exhaust valve bridge assembly
10	VG1246050055	EVB调节螺钉	EVB setting screw
11	VG1246050056	EVB调节螺母	EVB setting nut
12	VG1246050057A	EVB压板	EVB impaction plate
13	Q150B1095TF2	六角头螺栓	Hex head bolt
14	Q5210614	圆柱销	Dowel pin
15	Q150B10100TF2	六角头螺栓	Hex head bolt
16	VG1246050008	气门摇臂总成	Rocker arm assembly
17	VG1246050011	气门桥调节螺钉总成	Valve setting screw
18	VG2130050065	气门间隙调整螺母	Nut
19	VG1246050013	气门桥	Valve bridge
20	VG1246050021	进气门	Intake valve
21	VG1246050022	排气门	Exhaust valve
22	VG1246050023	进气门弹簧	Intake valve spring
23	VG1246050024	排气门弹簧	Exhaust valve spring`
24	VG1246050025	气门弹簧上座	Spring cup
25	VG1246050026	气门弹簧下座	Spring seat
26	VG1246050028	气门锁夹	Valve cone
27	VG1246050060	中间齿轮总成	Idle gear assembly
28	VG1246050034	中间齿轮轴	Idle gear axle
29	VG1246050035	止推片	Thrust washer
30	Q150B1290TF2	六角头螺栓	Hex head bolt
31	VG1246050036	凸轮轴齿轮	Camshaft gear
32	Q5210612	圆柱销	Dowel pin
33	Q150B0830TF2	六角头螺栓	Hex head bolt
