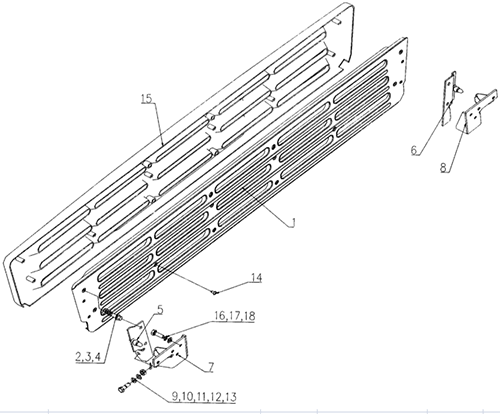

| NO. | Part No. | Part Name | Quantity |
| 0 | AZ1642240011 | Grille assembly | 1 |
| 1 | WG1642240012 | Grille body | 1 |
| 2 | Q1840816 | Screw | 4 |
| 3 | Q340B08 | Nut | 4 |
| 4 | Q40408 | Spring washer | 4 |
| 5 | WG1642240005 | Connecting plate left | 1 |
| 6 | WG1642240006 | Connecting plate right | 1 |
| 7 | AZ1642240019 | Bracket left | 1 |
| 8 | AZ1642240020 | Bracket right | 1 |
| 9 | WG1642240080 | Bolt | 2 |
| 10 | Q40508 | Spring washer | 4 |
| 11 | Q340B08 | Nut | 2 |
| 12 | Q40008 | Washer | 2 |
| 13 | Q5000214 | Split pin | 2 |
| 14 | Q2764813 | Screw | 8 |
| 15 | WG1642240018 | Grille | 1 |
| 16 | Q150B0825 | Screw | 4 |
| 17 | Q40008 | Washer | 4 |
| 18 | Q40408 | Spring washer | 4 |
