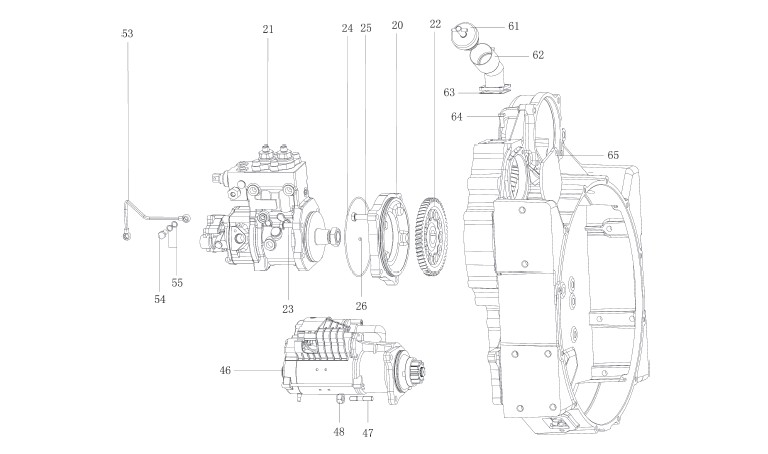

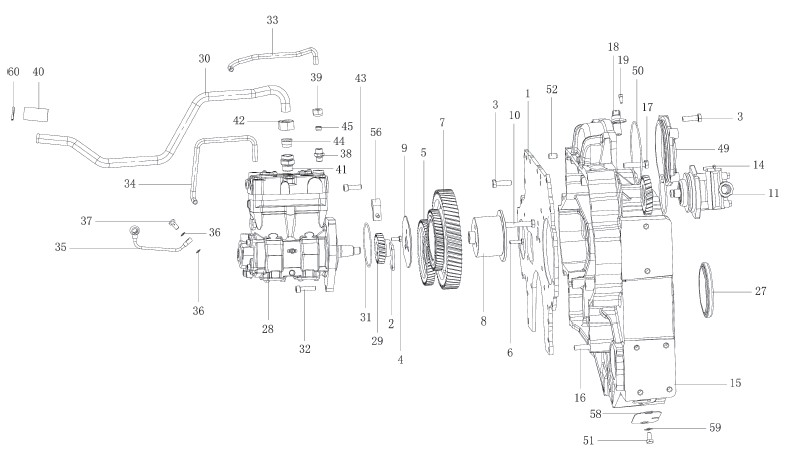

| NO. | Part No. | Chinese Name | Part Name |
| 1 | 612630030001 | 飞轮壳连接板 | Sheet panel housing flywheel |
| 2 | 612630030002 | 凸轮轴止推板 | Camshaft axial guide |
| 3 | 90003800619 | 六角头螺栓 | Screw |
| 4 | 90003802443 | 六角头螺栓 | Screw |
| 5 | 612630030003 | 凸轮轴齿轮 | Camshaft gear |
| 6 | 90003802432 | 六角头螺栓 | Screw |
| 7 | 612630030040 | 中间齿轮分总成 | Idler gear |
| 8 | 612630030019 | 中间齿轮轴 | Idler gear pin |
| 9 | 612630030020 | 惰轮挡板 | Washer thrust |
| 10 | 612639000025 | 六角头螺栓 | Screw |
| 11 | 612630030005 | 液压泵 | Steering pump |
| 12 | 612630030027 | 液压泵齿轮 | Steering pump gear |
| 13 | 612630030045 | O型密封圈 | O-ring |
| 14 | 90003802419 | 六角头螺栓 | Screw |
| 15 | 612630030110 | 飞轮壳 | Flywheel house |
| 16 | 90011350063 | 六角头螺栓 | Screw |
| 17 | 90011350058 | 六角头螺栓 | Screw |
| 18 | 612630030007 | 转速传感器 | Sensor flywheel |
| 19 | 90013050006 | 内六角圆柱头螺钉 | Screw |
| 20 | 612630030023 | 喷油泵法兰 | Feed pump flange |
| 21 | 612630030024 | 共轨喷油泵 | Feed pump |
| 22 | 612630030026 | 喷油泵齿轮 | Feed pump gear |
| 23 | 90003802532 | 六角头螺栓 | Screw |
| 24 | 612630030044 | 0型密封圈 | O-ring |
| 25 | 90003802542 | 六角头螺栓 | Screw |
| 26 | 612639000065 | 六角头螺栓 | Screw |
| 27 | 612630030009 | 曲轴后油封 | Seal ring |
| 28 | 612630030047 | 双缸空气压缩机 | Air compressor |
| 29 | 612630030032 | 空压机齿轮 | Air compressor gear |
| 30 | 612630030033 | 空压机进气管 | Pipe air compressor |
| 31 | 612639000039 | 0型密封圈 | O-ring |
| 32 | 90013550004 | 圆柱头内六角螺栓 | Screw |
| 33 | 612630030034 | 空压机出水管 | Pipe air compressor |
| 34 | 612630030036 | 空压机进水管 | Pipe air compressor |
| 35 | 612630030037 | 双缸空压机机油管 | Pipe oil air compressor |
| 36 | 90003098010 | 密封垫圈 | Seal ring |
| 37 | 612630030055 | 空心螺栓 | Hollow screw |
| 38 | 612639000057 | 双管接头 | Connector |
| 39 | 612639000022 | 联接螺母 | Union nut |
| 40 | 612630030038 | 进气管软管 | Hose suction |
| 41 | 612639000060 | 双管接头 | Connector |
| 42 | 612639000041 | 管接螺母 | Union nut |
| 43 | 90003802532 | 内六角圆柱头螺钉 | Screw |
| 44 | 612639000082 | 卡套 | Taper bush |
| 45 | 90003559563 | 卡套 | Taper bush |
| 46 | 612600090409 | 起动机 | Starter |
| 47 | 90003811524 | 双头螺柱 | Stud |
| 48 | 90003888452 | 六角锁紧螺母 | Nut |
| 49 | 612630030021 | 后取力盖板 | Cover |
| 50 | 612630030022 | 0型密封圈 | O-ring |
| 51 | 90003802511 | 六角头螺栓 | Screw |
| 52 | 90003901604 | 圆柱销 | Pin |
| 53 | 612630030013 | 机油管 | Oil pipe |
| 54 | 612630030055 | 空心螺栓 | Hollow screw |
| 55 | 90003098010 |
