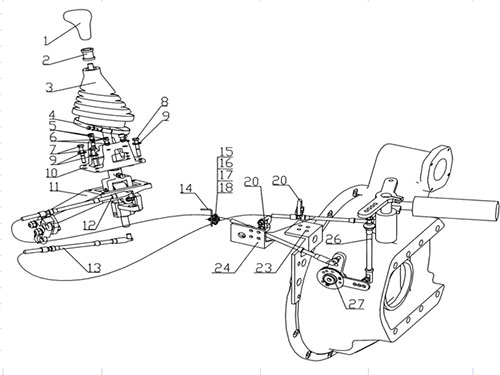

| NO. | Part No. | Part Name | Quantity |
| 1 | AZ9100240061 | Gear shift knob | 1 |
| 1A | WG9725240110 | Position transfer | 1 |
| 2 | 179200240075 | Cable sleeve | 1 |
| 3 | AZ9725240101 | Siphon | 1 |
| 4 | 190003989318 | Circlip | 1 |
| 5 | Q218B0825 | Screw | 4 |
| 6 | Q40308 | Spring washer | 4 |
| 7 | Q150B0850 | Screw | 2 |
| 8 | Q150B0835 | Screw | 2 |
| 9 | Q40308 | Spring washer | 4 |
| 10 | AZ9725240102 | Connecting block | 1 |
| 11 | WG9725240107 | Operator assembly | 1 |
| 11/1 | WG9725240108 | Operator | 1 |
| 11/2 | WG9725240109 | Gear shift lever | 1 |
| 12 | WG9725240111 | Positioning cable | 1 |
| 13 | WG9719240112 | Gear shift cable | 1 |
| 14 | WG97 350169 | Angle | 1 |
| 15 | Q150B0840 | Screw | 3 |
| 16 | Q40308 | Spring washer | 3 |
| 17 | Q340B08 | Nut | 3 |
| 18 | Q67918 | Clamp | 3 |
| 19 | AZ9725240028 | Protect sleeve for cable | 1 |
| 21 | Q150B0835 | Screw | 1 |
| 22 | Q40108 | Washer | 1 |
| 23 | AZ9725240106 | Bracket for gear shift cable | 1 |
| 24 | AZ9719240029 | Bracket for positioning cable | 1 |
| 26 | WG9719240117 | Support bar | 1 |
| 29 | AZ9725240026 | Protect sleeve for cable | 1 |
