2015-04-16 11:01:56

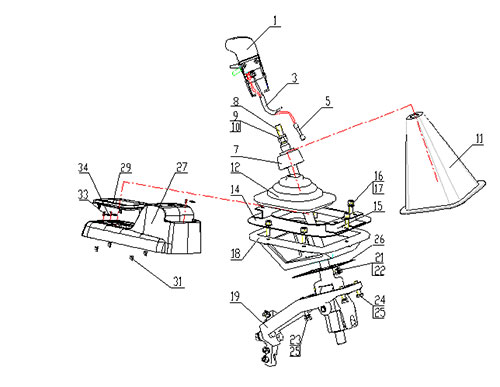

| NO. | Part No. | Quantity | Part Name | Chinese Name |
| 1 | WG9700240015 | 1 | Gear shift knob | 变速器换档手柄及档位标牌总成 |
| 3 | WG9700240005 | 1 | windpipe | 变速器手柄气管 |
| 5 | WG9700240003 | 1 | 6/4 switch collar | 6/4快插变径接头 |
| 7 | AZ9925240009 | 1 | Fixed adhesive Siphon | 防尘罩固定胶套 |
| 8 | AZ9725240014 | 1 | Gear shift lever | 变速器操纵杆 |
| 9 | Q40312 | 1 | Spring washer | 弹簧垫圈 |
| 10 | Q340B12 | 1 | nut | Ⅰ型六角头螺母 |
| 11 | AZ9925240008 | 1 | Gear shift Siphon | 换档杆防尘罩总成 |
| 12 | AZ9925240002 | 1 | Siphon | 防尘罩 |
| 14 | AZ9925240007 | 1 | Fixed board of Siphon | 防尘罩固定板 |
| 15 | AZ1664160400 | 2 | Bracket for gear shift cable | 换档罩前支架 |
| 16 | Q218B0825 | 6 | Screw | 内六角圆柱头螺钉 |
| 17 | Q40008 | 6 | Washer | 小垫圈 |
| 18 | AZ9925240013 | 1 | Connector for operator | 操纵器连接块 |
| 19 | WG9725240108 | 1 | Operator | 操纵器(左置车) |
| 21 | Q150B0816 | 1 | Screw | 六角头螺栓 |
| 22 | Q40308 | 1 | Spring washer | 弹簧垫圈 |
| 23 | Q150B0845 | 2 | Screw | 六角头螺栓 |
| 24 | Q150B0830 | 2 | Screw | 六角头螺栓 |
| 25 | Q40308 | 4 | Spring washer | 弹簧垫圈 |
| 26 | AZ9725240119 | 2 | Paper washer | 纸垫 |
| 27 | WG1664160350 | 1 | Protect sleeve for shift handle | 换档杆护罩 |
| 29 | WG1664160351 | 1 | Cover of Protect sleevefor shift handle | 换档杆护罩上盖 |
| 31 | WG1642160137 | 4 | Plastic fastener | 塑料卡扣 |
| 33 | Q2204816 | 5 | Screw and washer subassembly | 十字槽盘头自攻螺钉和平垫圈组合件 |
| 34 | Q39748201 | 5 | Spring nut | 簧片螺母 |
